Home >> Kia >> 2019 >> K900 >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Column Module Diagnosis >> DTC B1637-00: System Not Initialized >> System Inspection

System Inspection

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below

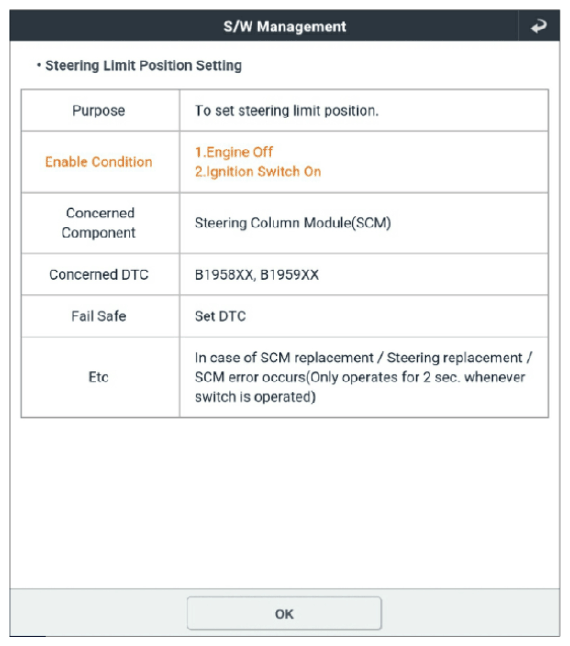

G13136734Courtesy of KIA MOTORS AMERICA, INC.

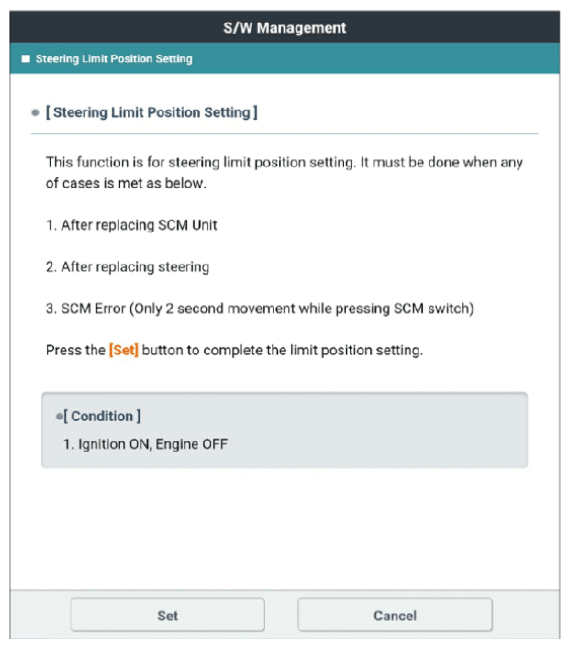

G13136735Courtesy of KIA MOTORS AMERICA, INC.

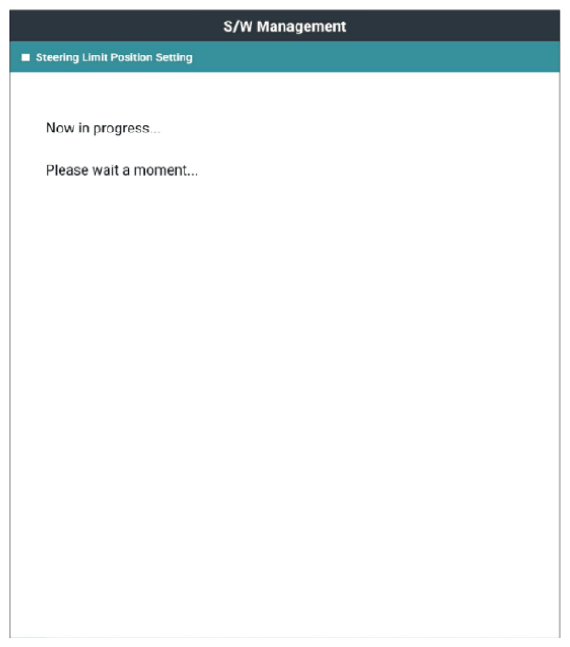

G13136736Courtesy of KIA MOTORS AMERICA, INC.

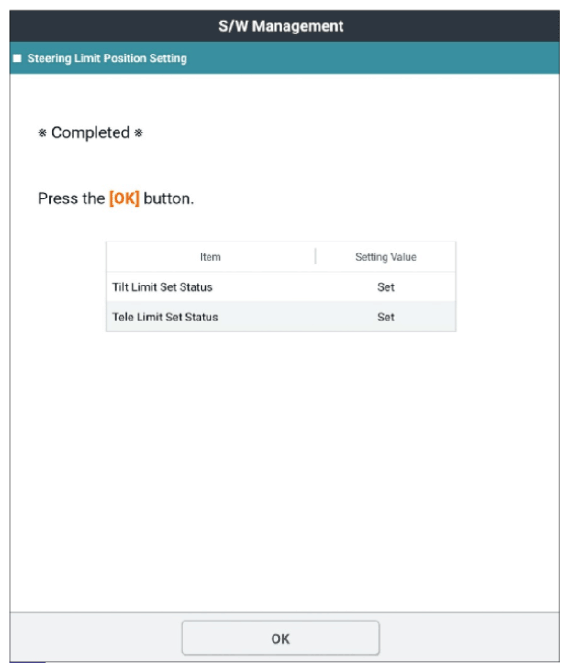

G13136737Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
