Steering Column Module (SCM)

  1. Disconnect the battery negative terminal.

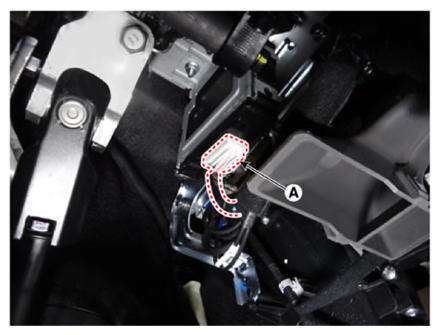

  2. Disconnect the steering column module (SCM) connector (A).
    G13144561Courtesy of KIA MOTORS AMERICA, INC.

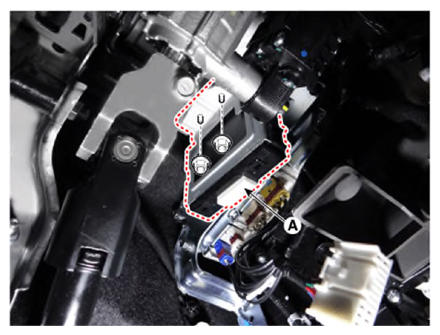

  3. Remove the steering column module (SCM) by loosening the nuts.
    G13144562Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
  5. Perform the "STEERING LIMIT POSITION SETTING " procedures by KDS.
