Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Idle Stop & Go (ISG) System
>>
Alternator
>>
Schematic Diagrams
>>

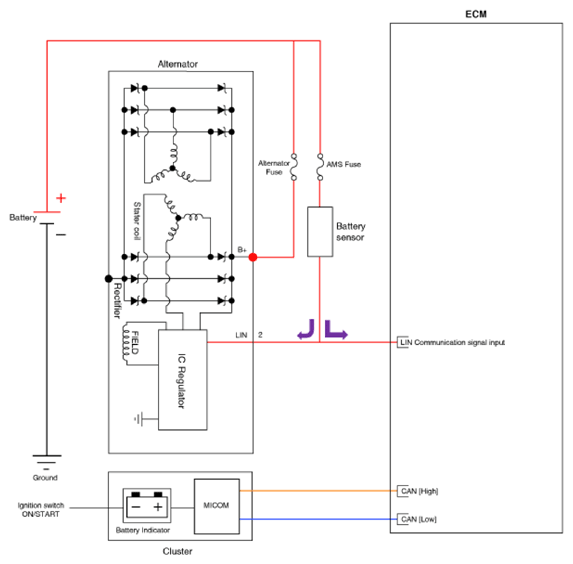

Circuit Diagram
Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Information
COM signal
- LIN communication control
B+ Terminal
- The output voltage from the generator travels to the battery via the B+ terminal.
Courtesy of KIA MOTORS AMERICA, INC.
