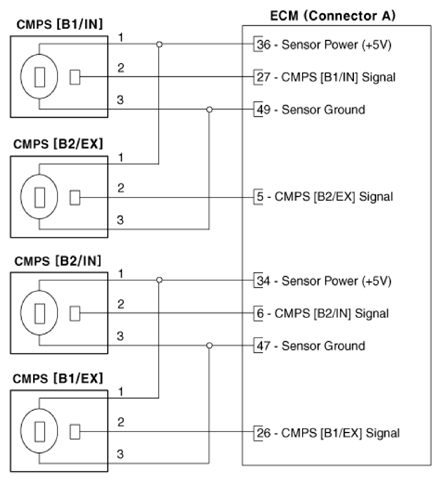

Home >> Kia >> 2019 >> K900 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Camshaft Position Sensor (CMPS) >> Schematic Diagrams >> Circuit Diagram >> Notes
