Repair Procedures: Replacement

  1. Remove the crankshaft damper pulley.

    (Refer to Drive Belt System - "CRANKSHAFT DAMPER PULLEY ")

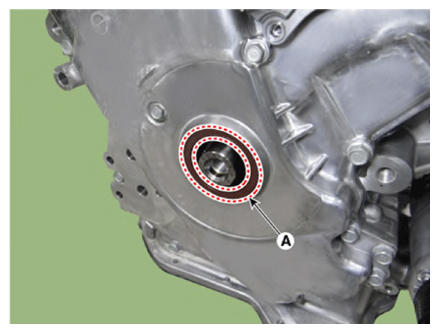

  2. Remove the front oil seal (A).
    G13142999Courtesy of KIA MOTORS AMERICA, INC.

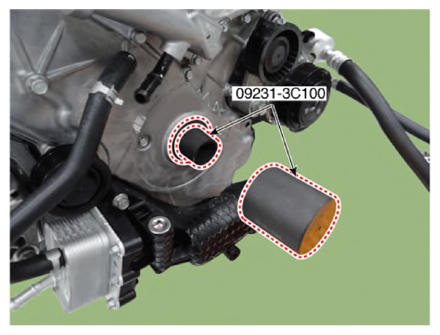

  3. Using SST (09231-3C100), install a new front oil seal.
G13143000Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Always use a new front oil seal.
