Repair Procedures: Replacement

Disconnect the negative battery terminal.
Remove the engine cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")

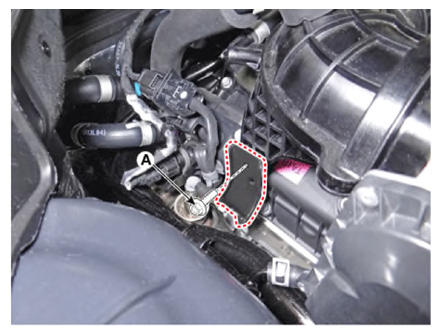

Remove the brake vacuum pipe bracket mounting bolts (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

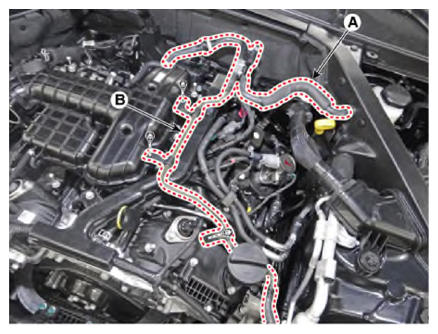

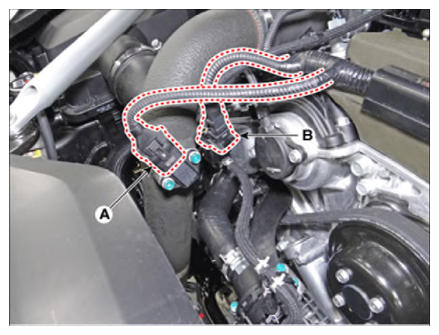

Disconnect the wiring connectors and harness clamps and remove the wiring protector around the surge tank.

Courtesy of KIA MOTORS AMERICA, INC.

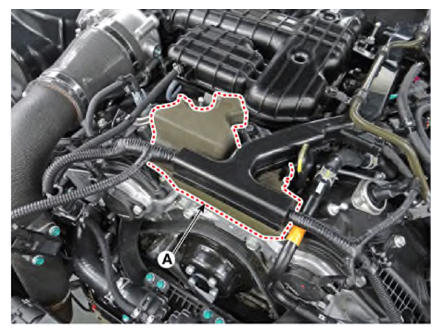

Remove the foam (A).

Courtesy of KIA MOTORS AMERICA, INC.

Disconnect the intercooler outlet hose.

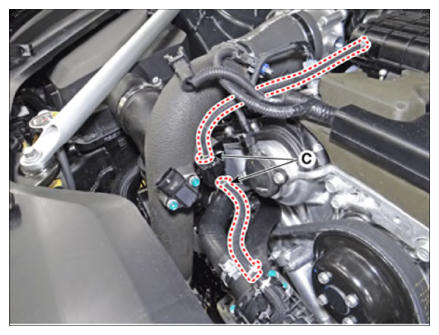

Disconnect the vacuum hose (C).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

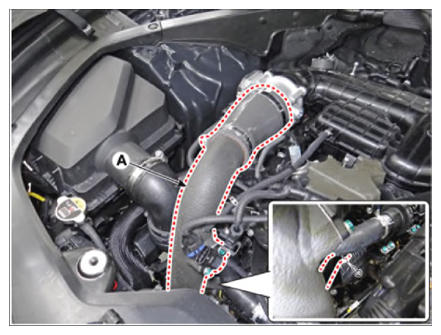

Disconnect the intercooler outlet hose (A).

Tightening torque

Hose clamp:

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft. 43.4 - 60.8 lb.in)

(If equipped with a cap, tighten it until the cap is removed.)

Pipe bolt:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Remove the surge tank stay mounting bolt (A).
Tightening torque:

26.5 - 31.4 N.m (2.7 - 3.2 kgf.m, 19.5 - 23.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

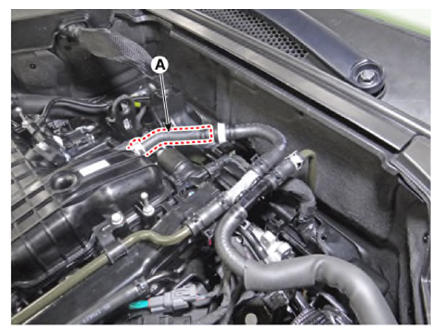

Disconnect the positive crankcase ventilation (PCV) hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

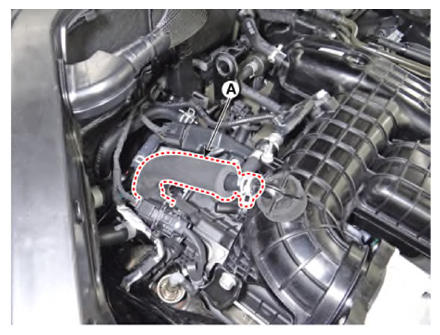

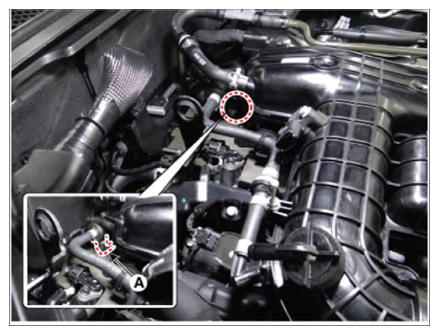

Disconnect the brake vacuum hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Separate the electric throttle control (ETC) module.
(Refer to Engine control/Fuel System - "ETC (ELECTRONIC THROTTLE CONTROL) SYSTEM ")
Disconnect the purge control solenoid valve (PCSV) hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

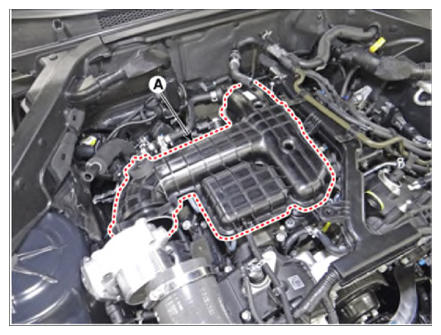

Remove the surge tank (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
