Repair Procedures: Installation

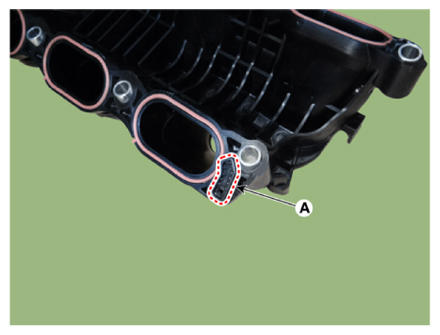

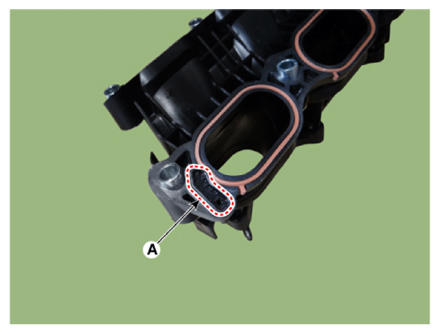

Install the new water gasket (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Always use a new water gasket.

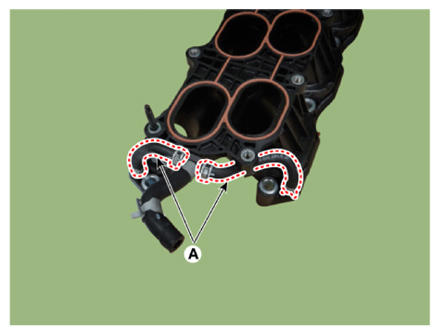

Connect the water hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

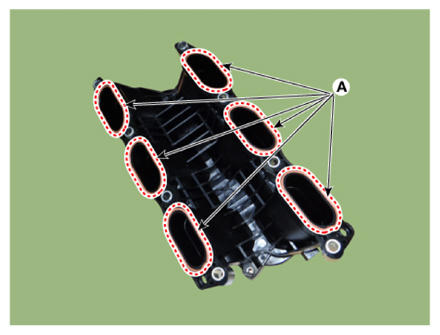

Install the new intake manifold gasket (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Always use a new intake manifold gasket.

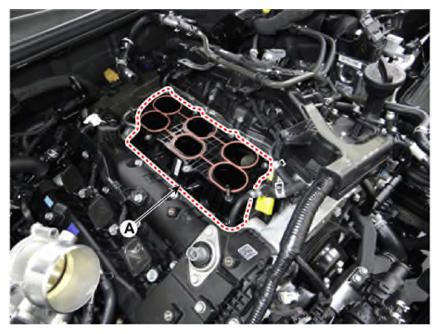

Install the intake manifold (A).

Courtesy of KIA MOTORS AMERICA, INC.
Tighten the intake manifold bolts, in several passes as below.
Tightening torque

1st step (a-h):

3.9 - 5.8 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)

2nd step (1 - 8):

26.5 - 31.4 N.m (2.7 - 3.2 kgf.m, 19.5 - 23.1 lb.ft)

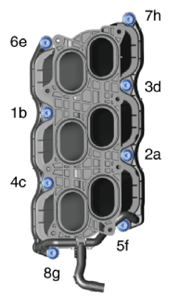

Fig 1: Intake Manifold Bolts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
Install the other parts in the reverse order of removal.
Fill the coolant.
(Refer to Cooling System - "COOLANT ")
Start engine and check for leaks.
Recheck engine coolant level.
