Repair Procedures: Removal

  1. Remove the start/stop button.

    (Refer to Button Engine Start System - "START/STOP BUTTON ")

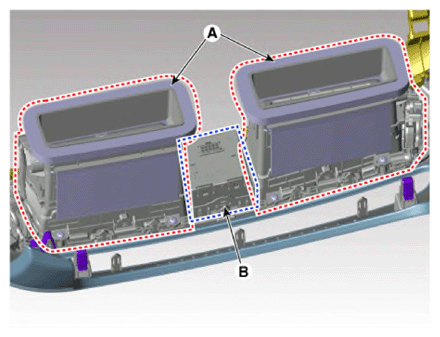

  2. Remove the clock (B) after removing the air vent duct (A).
G13128614Courtesy of KIA MOTORS AMERICA, INC.
