Battery Terminal

  1. Move back and forth to check if the battery terminals (A) are loose or corroded. If the terminals are corroded, clean them.

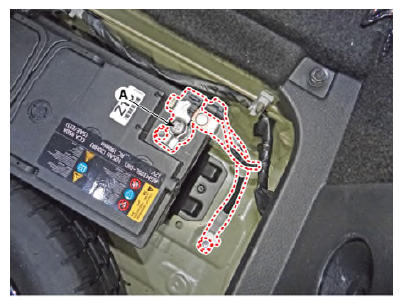

    G12726728Courtesy of KIA MOTORS AMERICA, INC.

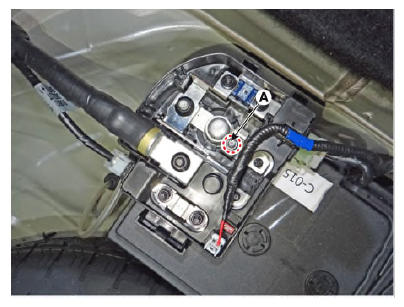

    G12726729Courtesy of KIA MOTORS AMERICA, INC.

    If battery positive connection is loose, disconnect ground (GND) cable first before attempting to remove or tighten plus connection, to prevent personal injury.

  2. If the battery clamp on battery positive (+) terminal is not seated securely:
    1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
    2. Tighten battery clamp (A) on battery positive (+) terminal

      Battery positive (+) terminal:

      7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

      G12726730Courtesy of KIA MOTORS AMERICA, INC.
  3. If the battery clamp on battery negative (-) terminal is not seated securely:
    1. Tighten battery clamp (A) on battery negative (-) terminal.

      Battery negative (-) terminal:

      7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

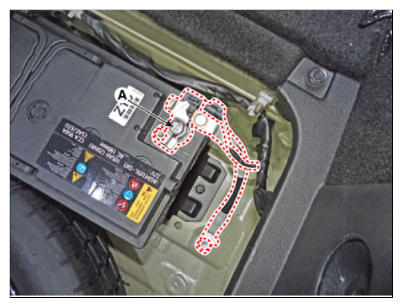

      G12726731Courtesy of KIA MOTORS AMERICA, INC.
