Repair Procedures: Removal

CAUTION: Put on gloves to prevent hand injuries.

NOTE: Use seat covers to avoid damaging any surfaces.

Remove the rear package tray trim.
(Refer to Trunk Trim - "REAR PACKAGE TRAY TRIM ")

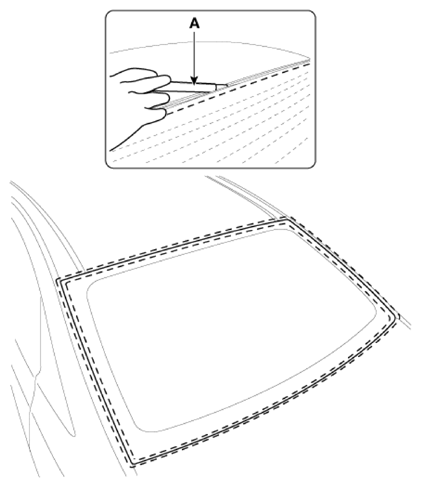

Cut out the adhesive using the cutter (A).
Information

Use the cutter with a 20 to 30 cm-long blade.

Courtesy of KIA MOTORS AMERICA, INC.

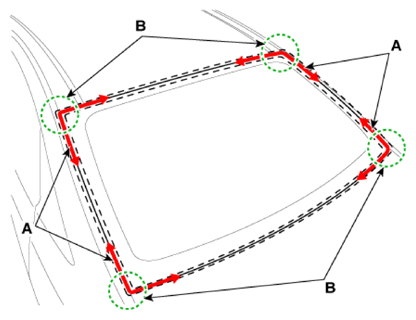

Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.

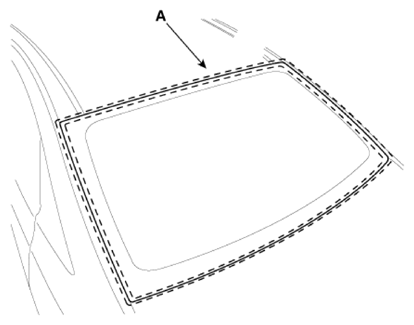

Put in a piano wire (A) through the corner of the windshield glass and insert wire grips into both ends of the wire.

Courtesy of KIA MOTORS AMERICA, INC.

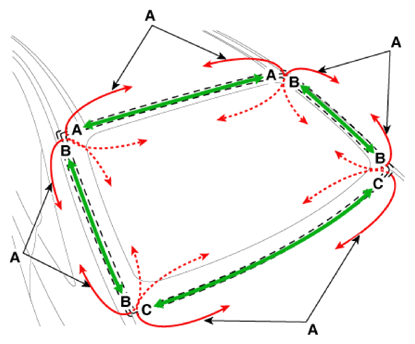

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.

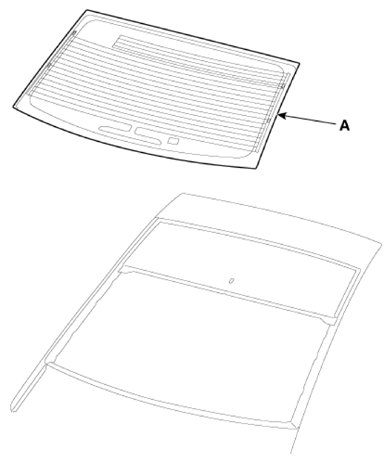

Carefully remove the rear window glass (A).

NOTE: When removing and installing the rear window glass, an assistant is necessary.

Courtesy of KIA MOTORS AMERICA, INC.
