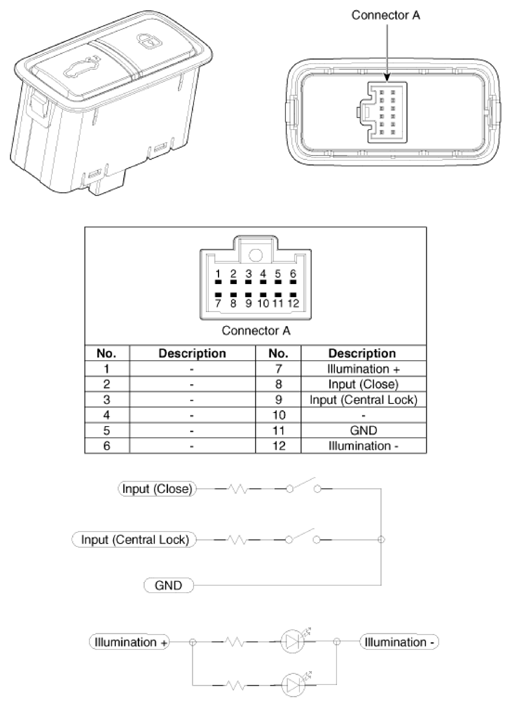

Home >> Kia >> 2019 >> K900 >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Power Trunk Module >> Power Trunk Inner Switch >> Schematic Diagrams >> Connector and Terminal function
