Repair Procedures: Inspection

  1. Remove the trunk inner switch.
  2. Check for continuity between terminals of the trunk inner switch.

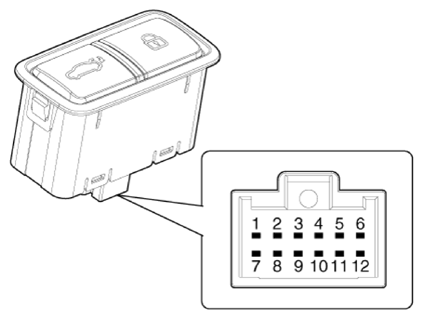

G13128972Courtesy of KIA MOTORS AMERICA, INC.

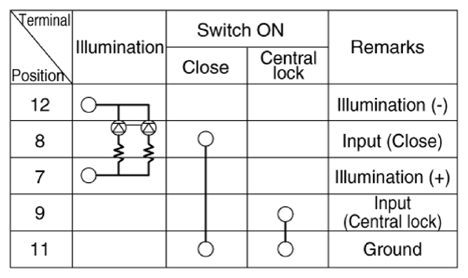

G13128973Courtesy of KIA MOTORS AMERICA, INC.
