Repair Procedures: Removal

  1. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

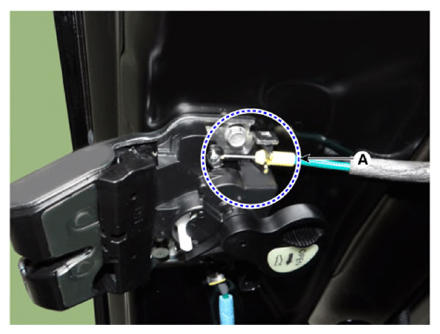

  2. Disconnect the cable (A) from the trunk lid latch.
    G13128967Courtesy of KIA MOTORS AMERICA, INC.

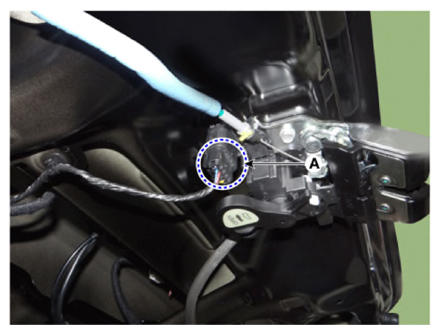

  3. Disconnect the connector (A) from the trunk lid latch.
    G13128968Courtesy of KIA MOTORS AMERICA, INC.

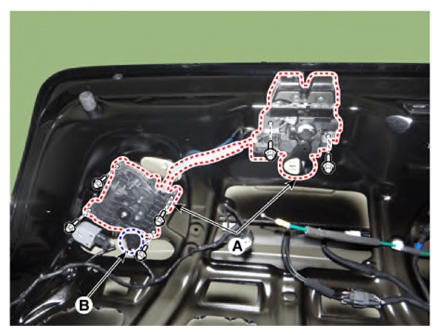

  4. Remove the power trunk lid latch (A) by loosening the mounting bolts after disconnecting the connector (B).
G13128969Courtesy of KIA MOTORS AMERICA, INC.
