Connector and Terminal function

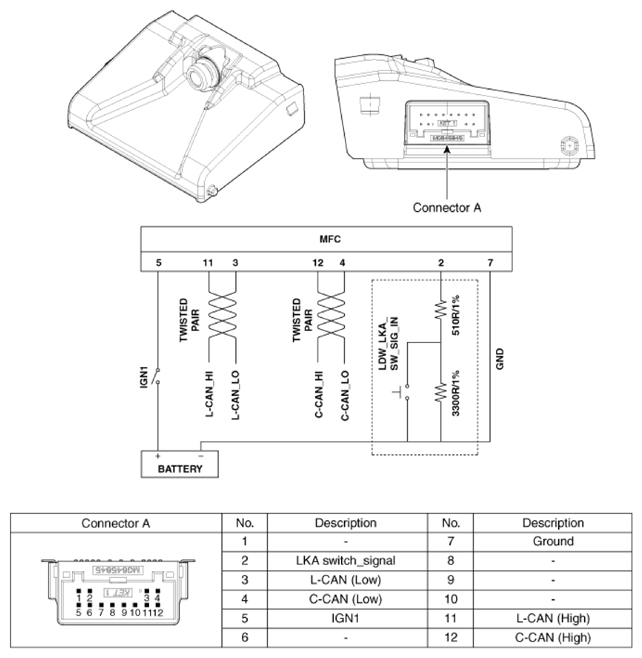

Fig 1: Front Camera Unit Connector End View And Terminal Description

G13128645

Courtesy of KIA MOTORS AMERICA, INC.
