Trunk Lock Module

  1. Remove the trunk trim.

    (Refer to Body - "TRUNK LID TRIM ")

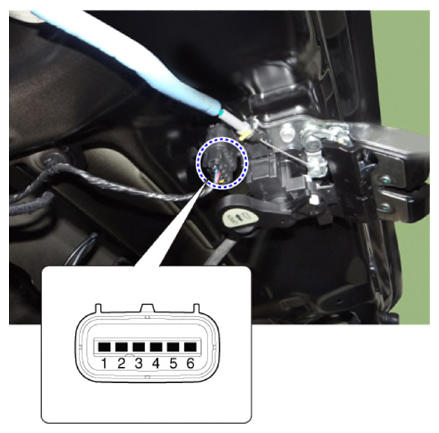

  2. Disconnect the trunk lid latch connector.
    G13128920Courtesy of KIA MOTORS AMERICA, INC.
  3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
    G13128921Courtesy of KIA MOTORS AMERICA, INC.
    G13128922Courtesy of KIA MOTORS AMERICA, INC.
  4. For a inspection of the power trunk option vehicles, refer to the POWER TRUNK MODULE .
