Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.

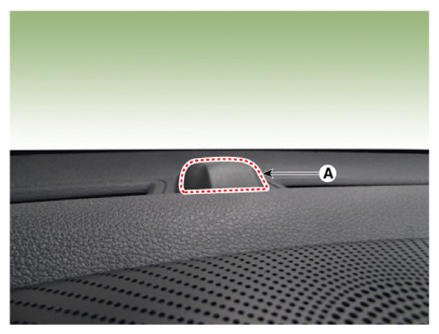

  2. Using a scraper or remover, remove the photo sensor (A).
    G12832902Courtesy of KIA MOTORS AMERICA, INC.

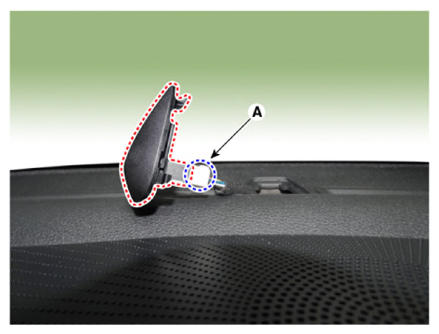

  3. Disconnect the photo sensor connector (A).
    G12832903Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
