Repair Procedures: Removal

NOTE: Precautions for using the plastic pulley

Take care not to give physical impact to the plastic pulley.
If exposed to the impact of dropping and collision, the pulley should not be used although not damaged.

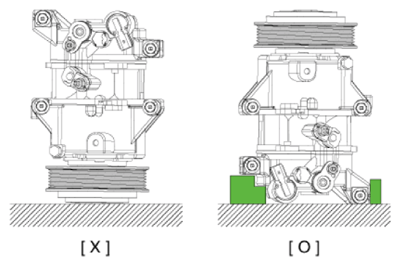

Be careful not to place the pulley to downwards of the floor or table.

Courtesy of KIA MOTORS AMERICA, INC.

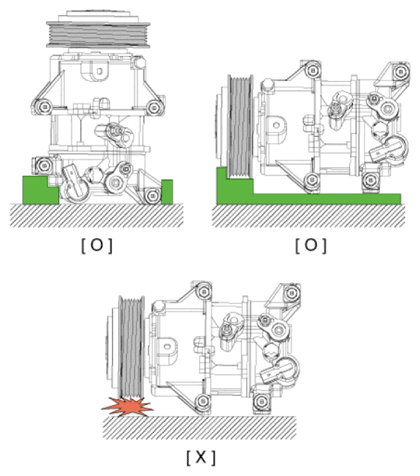

Be careful not to apply the external force and impact on pulley while moving or using.

Courtesy of KIA MOTORS AMERICA, INC.

Be careful not to apply force to the pulley.

Courtesy of KIA MOTORS AMERICA, INC.

If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
Disconnect the negative (-) battery terminal.
Recover the refrigerant with a recovery/charging station.
Remove the engine room under cover.
G 2.0 MPI NU (Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ")
Loosen the drive belt.
G 2.0 MPI NU (Refer to Engine Mechanical System - " DRIVE BELT ")

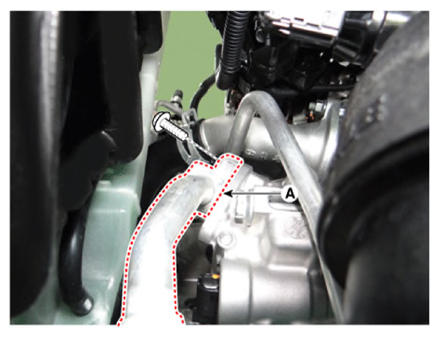

Remove the bolts, then disconnect the discharge line (A) from the compressor.
Tightening torque:

21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

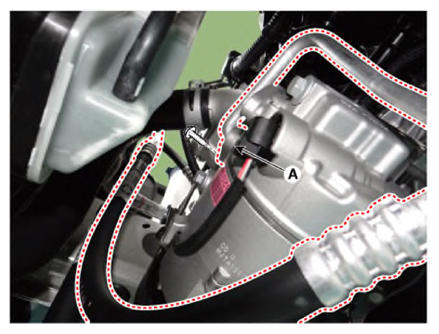

Remove the bolts, then disconnect the suction line (A) from the compressor.
Tightening torque:

21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

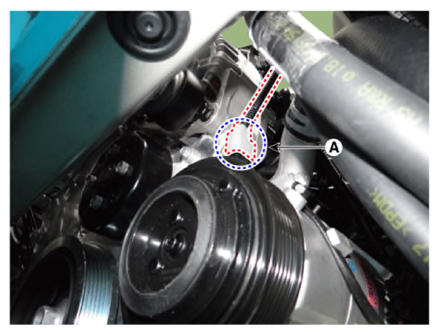

Disconnect the compressor switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

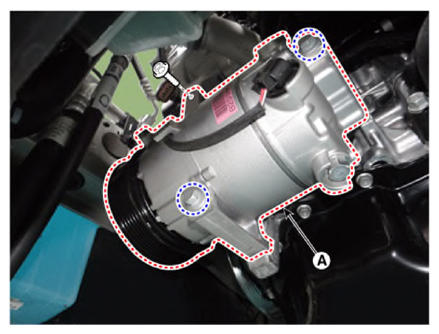

Remove the compressor (A) by loosening the mounting bolts.
Tightening torque:

19.6 ~ 33.3 N.m (2.0 ~ 3.4 kgf.m, 14.5 ~ 24.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
