Components & Components Location: Components

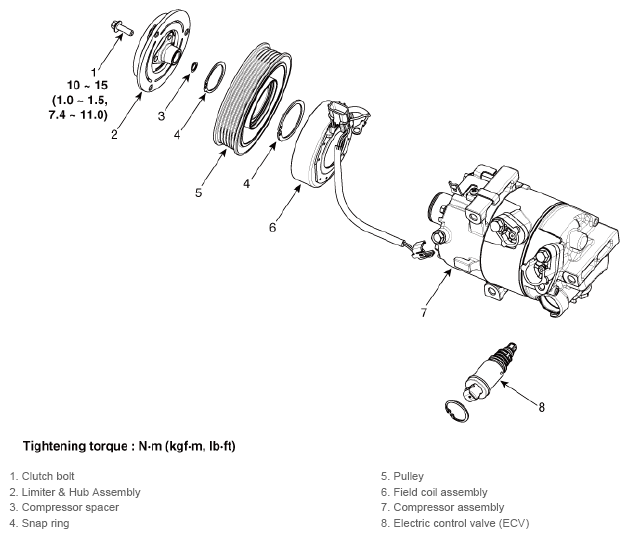

Fig 1: Compressor Components Location With Torque Specification

G12832859

Courtesy of KIA MOTORS AMERICA, INC.
