Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the engine room under cover.

    G 2.0 MPI NU (Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER  ")

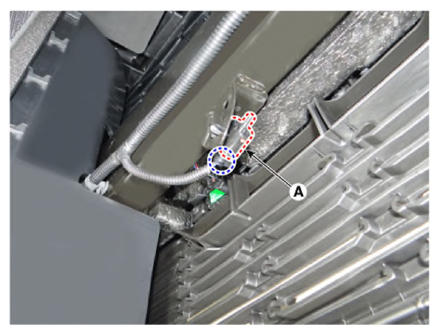

  3. Disconnect the connector and then remove the ambient temperature sensor (A).
    G12832906Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
