Radiator Leakage Test

  1. Wait until engine is cool, then carefully remove the radiator cap and fill the radiator with engine coolant, then install it on the pressure tester.

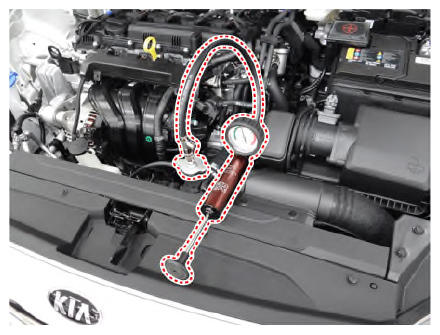

    G12826166Courtesy of KIA MOTORS AMERICA, INC.
  2. Apply a pressure tester to the radiator and apply a pressure of 93.16 - 122.58 kPa (0.95 - 1.25 kgf/cm2 , 13.51 - 17.78 psi).
  3. Inspect for engine coolant leaks and a drop in pressure.
  4. Remove the tester and reinstall the radiator cap.
    NOTE: Check for engine oil in coolant and/or coolant in engine oil.
