Repair Procedures: Inspection
WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
- The SJB can be diagnosed by using the KDS. The SJB communicates with the KDS which then displays inputs and outputs along with codes.
It will be able to quickly diagnose defects of hazard lamp switch with KDS. KDS can forcefully operate actuator, monitor input/output values and self diagnose.

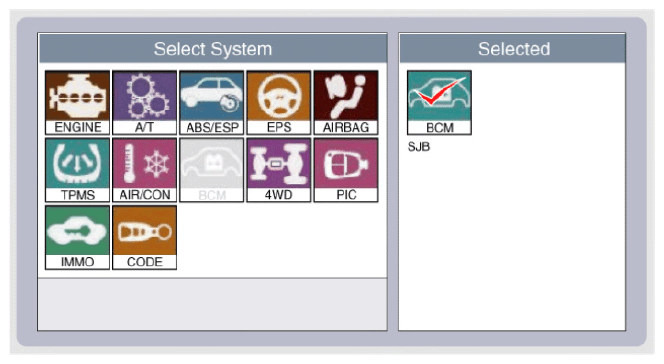

- To diagnose the SJB function, select the vehicle model, BCM and SJB.

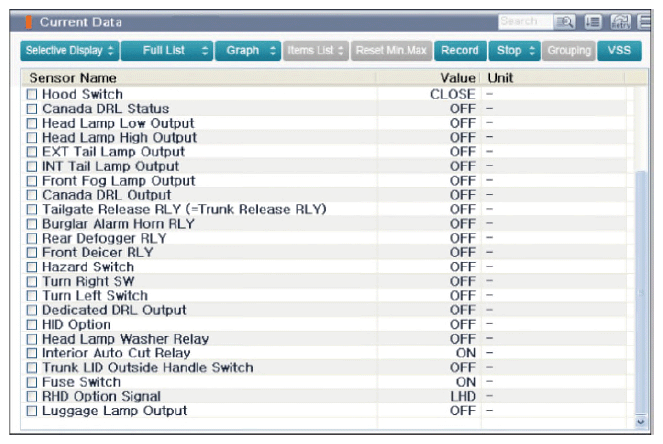

- To consult the present input/output values of SJB, select "Current DATA" to view current information of SJB input/output conditions.
