Repair Procedures: Removal

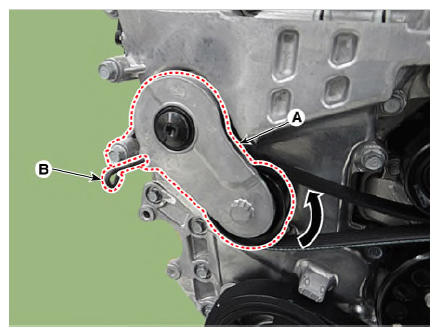

  1. Using the wrench, turning the auto tensioner pulley (A) counterclockwise and then insert a stopper pin (B) into the hole.
    G12826334Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the drive belt (A).

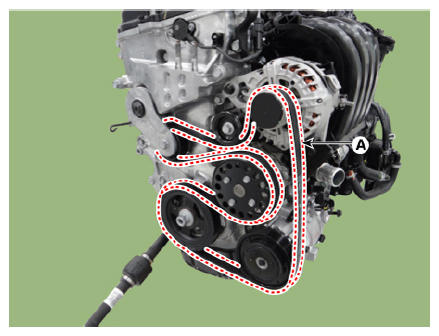

    Fig 1: Engine Drive Belt Routing Diagram
    G12826335Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
