Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. After replacing the cluster with a new one, the "Variant Coding" procedure must be performed.

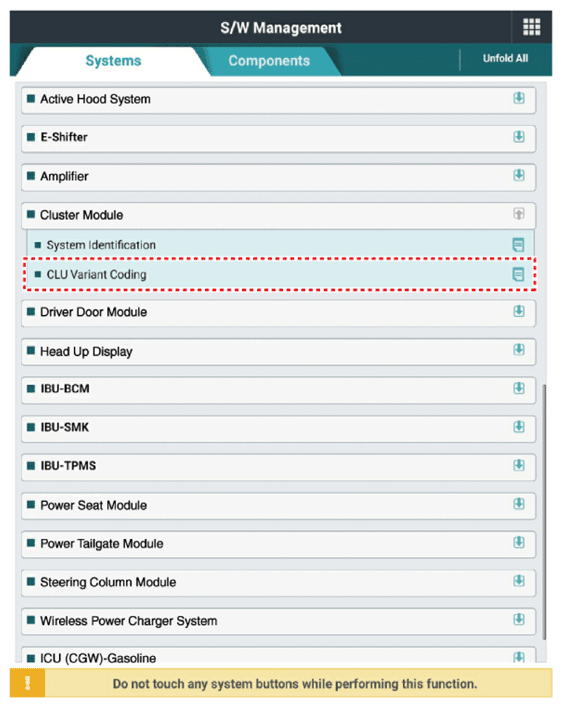

    G12832432Courtesy of KIA MOTORS AMERICA, INC.

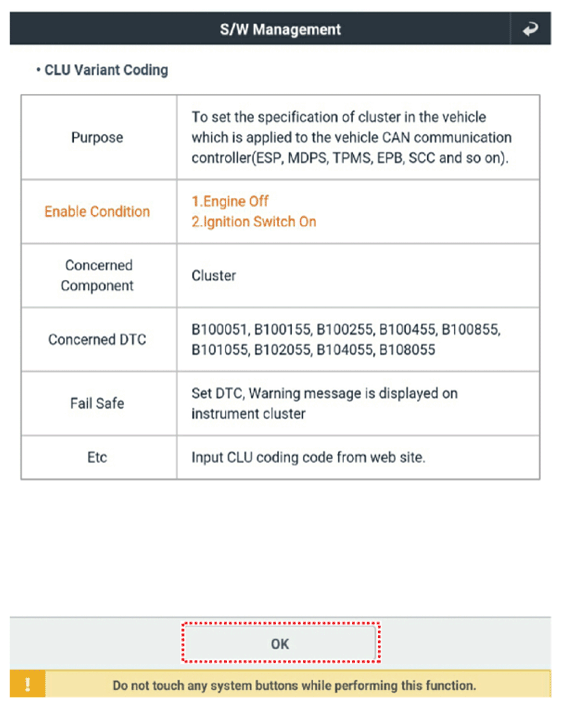

    G12832433Courtesy of KIA MOTORS AMERICA, INC.

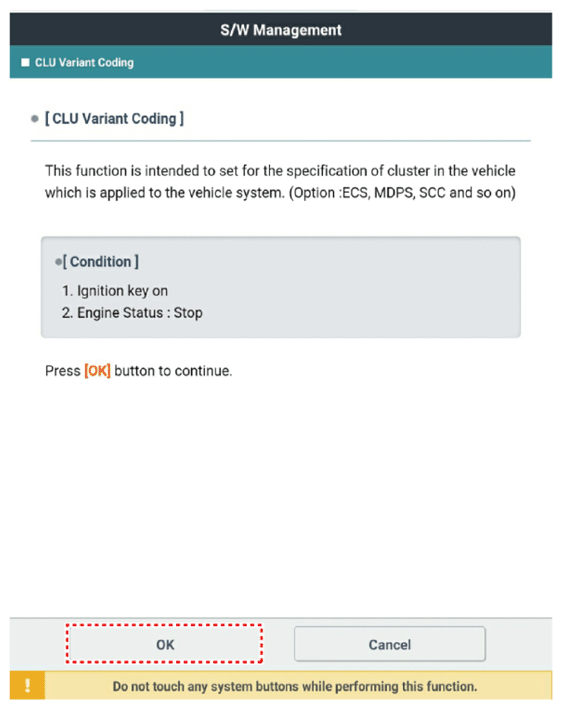

    G12832434Courtesy of KIA MOTORS AMERICA, INC.
