Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

Information

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the cluster fascia panel.
(Refer to Crash Pad - " CLUSTER FASCIA PANEL ")

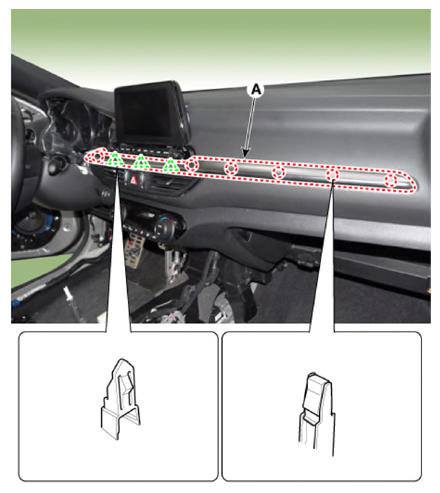

Remove the crash pad center garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.

Information

Replace any damaged clips (or pin-type retainers).
