Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

Information

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Using a screwdriver or remover, remove the crash pad side cover (A).

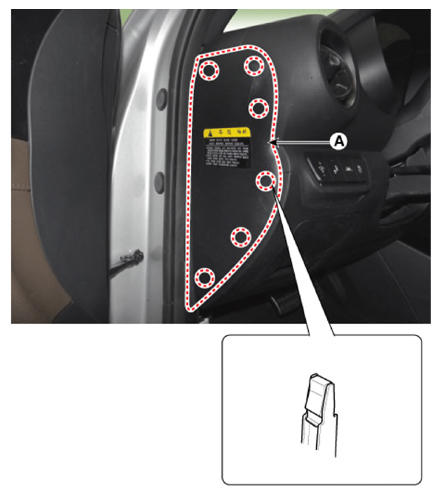

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

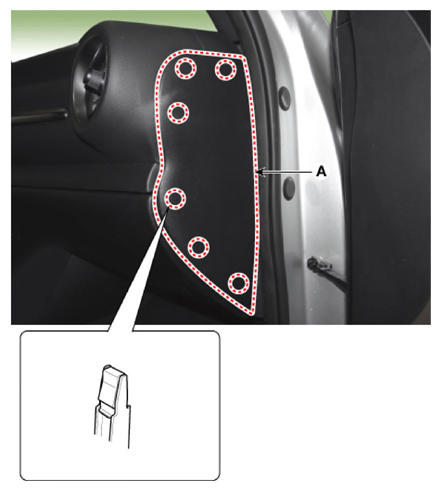

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.

Information

Replace any damaged clips (or pin - type retainers).
