Repair Procedures: Replacement

Information

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

1. Remove the floor console assembly.

   (Refer to Floor Console - " FLOOR CONSOLE ASSEMBLY  ")

2. Remove the crash pad lower panel

   (Refer to Floor Console - " CRASH PAD LOWER PANEL  ")

3. Remove the glove box.

   (Refer to Crash Pad - " GLOVE BOX  ")

4. Remove the crash pad center garnish assembly

   (Refer to Crash Pad - " CRASH PAD CENTER GARNISH ASSEMBLY  ")

5. Remove the heater & A/C control unit.

   (Refer to Heating, Ventilation, Air Conditioning - " HEATER & A/C CONTROL UNIT (DATC)  ")

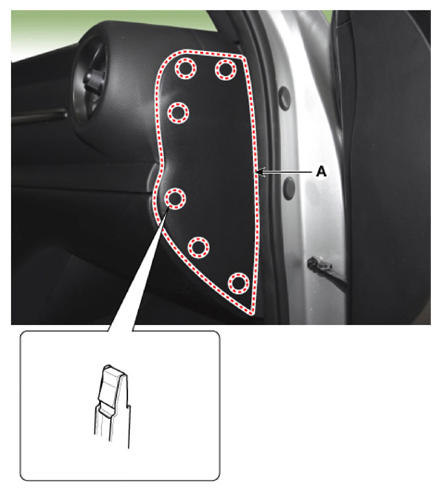

6. Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

   Courtesy of KIA MOTORS AMERICA, INC.

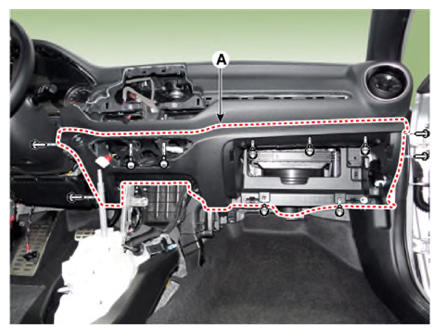

7. Loosen the mounting bolts and screws remove the crash pad center lower panel (A).

   Courtesy of KIA MOTORS AMERICA, INC.

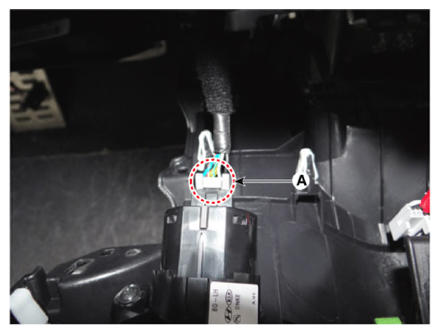

8. Disconnect the start button connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

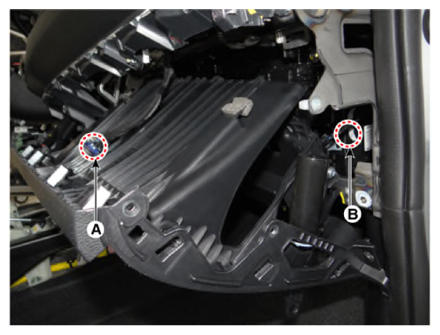

9. Disconnect the glove box lamp connector (A) and lamp switch connector (B).

   Courtesy of KIA MOTORS AMERICA, INC.

10. To install, reverse the removal procedure.

Information

Replace any damaged clips (or pin - type retainers).
