Repair Procedures: Replacement

Information

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the cowl top cover.

   (Refer to " COWL TOP COVER  ")

2. Remove the front wiper motor.

   (Refer to Body Electrical System - " FRONT WIPER MOTOR  ")

3. Remove the main crash pad assembly.

   (Refer to Crash Pad - " MAIN CRASH PAD ASSEMBLY  ")

4. Down the steering column after loosening the mounting bolts.

   (Refer to Steering System - " STEERING COLUMN AND SHAFT  ")

5. Loosen the cowl cross member mounting bolts.

   Courtesy of KIA MOTORS AMERICA, INC.

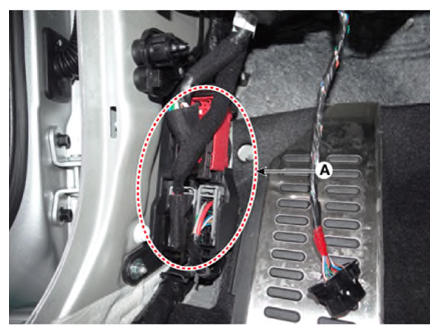

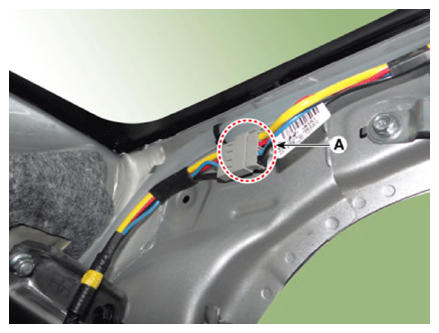

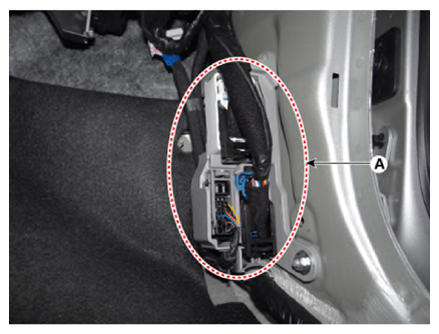

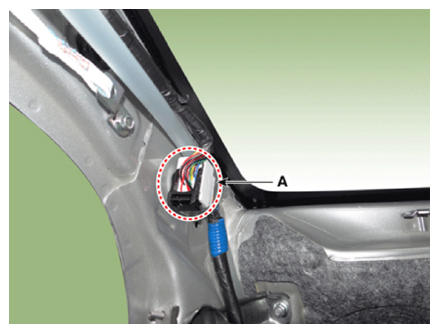

6. Disconnect the connector (A) and the mounting wiring fasteners in the front pillar.

   [Driver's]

   Courtesy of KIA MOTORS AMERICA, INC.

   [Passenger's]

   Courtesy of KIA MOTORS AMERICA, INC.

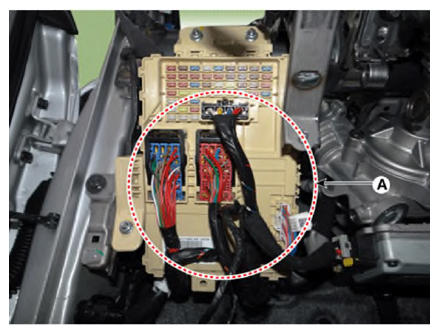

7. Disconnect the passenger compartment junction box connectors (A).

   Courtesy of KIA MOTORS AMERICA, INC.

8. Disconnect the multi box connectors (A).

   [Driver's]

   Courtesy of KIA MOTORS AMERICA, INC.

   [Passenger's]

   Courtesy of KIA MOTORS AMERICA, INC.

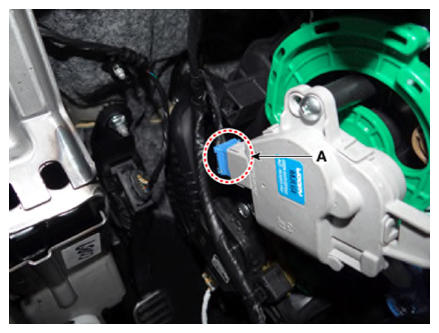

9. Disconnect the mode actuator connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

10. Disconnect the driver's temperature actuator connector (A).

    Courtesy of KIA MOTORS AMERICA, INC.

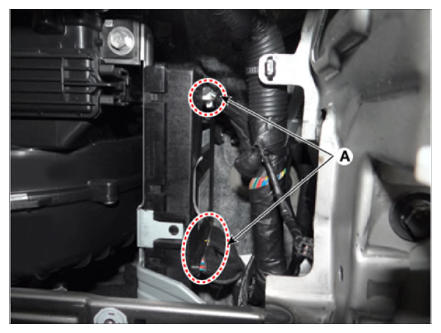

11. Remove the photo sensor wiring mounting clip (A).

    Courtesy of KIA MOTORS AMERICA, INC.

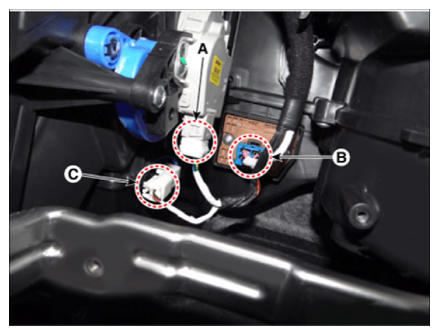

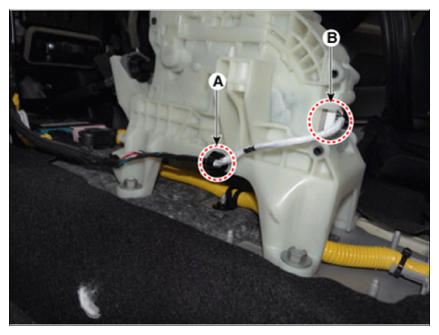

12. Disconnect the passenger's temperature actuator connector (A), power moffett connector (B) and evaporator temperature sensor connector (C).

    Courtesy of KIA MOTORS AMERICA, INC.

13. Disconnect the auto defogging actuator connector (A).

    Courtesy of KIA MOTORS AMERICA, INC.

14. Disconnect the intake actuator connector (A).

    Courtesy of KIA MOTORS AMERICA, INC.

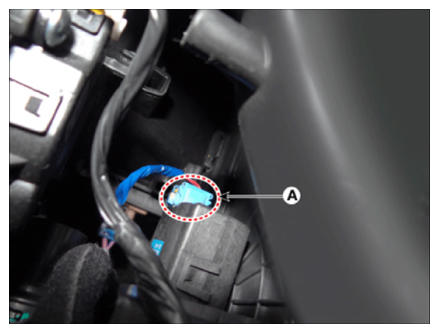

15. Disconnect the blower motor connector (A).

    Courtesy of KIA MOTORS AMERICA, INC.

16. Disconnect the IBU connector (A).

    Courtesy of KIA MOTORS AMERICA, INC.

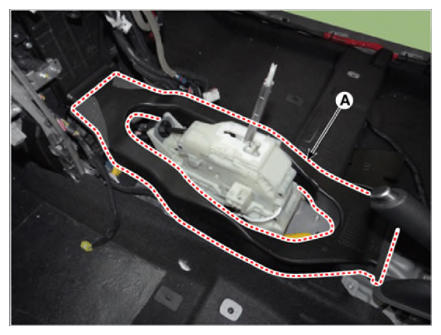

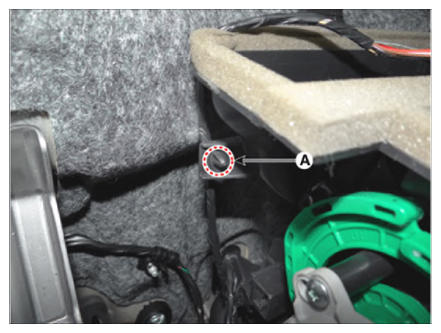

17. Loosen the nut and then separate the center console duct (A).

    Courtesy of KIA MOTORS AMERICA, INC.

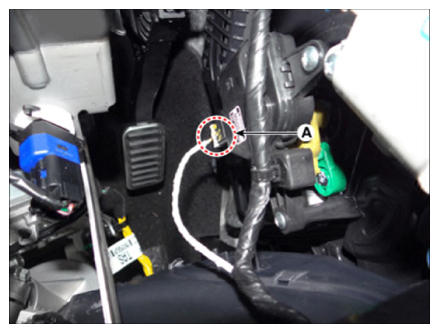

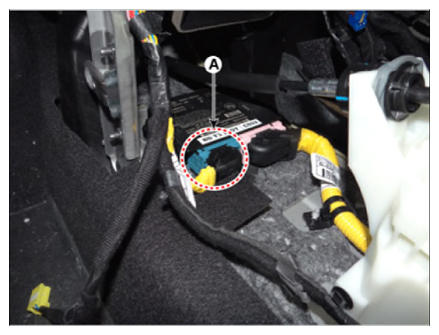

18. Disconnect the airbag control module (SRSCM) connector (A).

    Courtesy of KIA MOTORS AMERICA, INC.

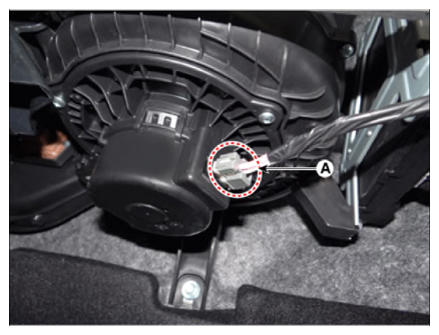

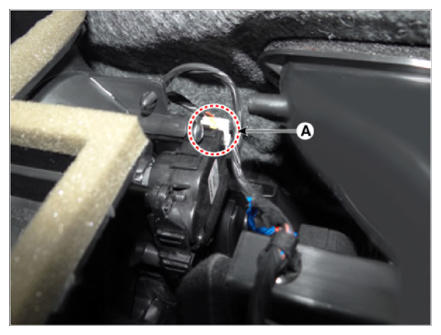

19. Disconnect the blower motor connector (A) and mounting clip (B).

    Courtesy of KIA MOTORS AMERICA, INC.

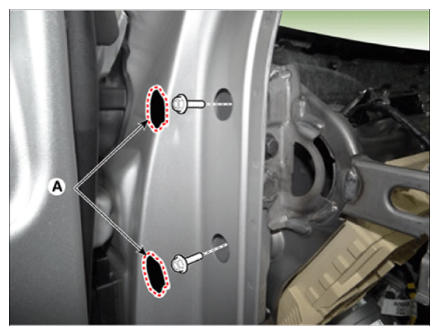

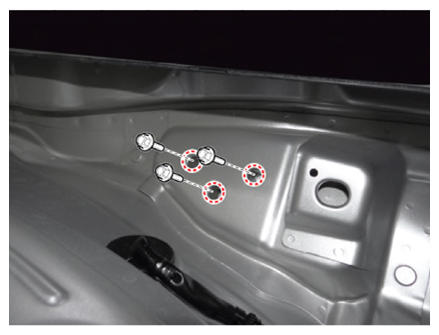

20. Remove the cowl cross bar mounting bolt caps (A).

    Courtesy of KIA MOTORS AMERICA, INC.

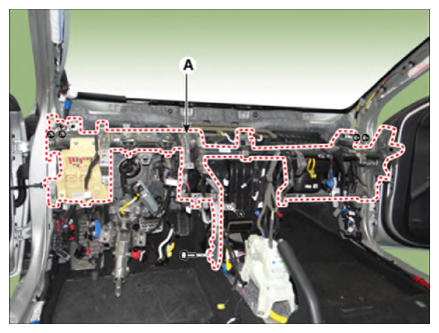

21. After loosening the bolts and nuts, then remove the cowl cross bar assembly (A).

    Courtesy of KIA MOTORS AMERICA, INC.

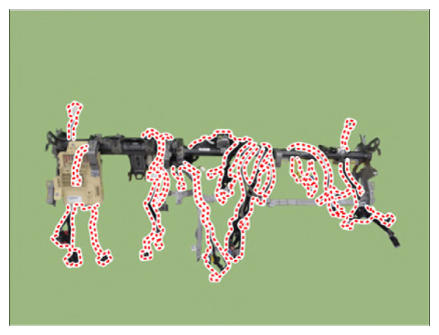

22. Remove the main wiring harness from the cowl cross bar.

    Courtesy of KIA MOTORS AMERICA, INC.

23. To install, reverse the removal procedure.

Information

• Make sure the crash pad fits onto the guide pins correctly.
• Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
• Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
• Enter the anti-theft code for the radio, then enter the customer's radio station presets.
• Make sure that each of the assembly components operates properly.
• Replace any damaged clips (or pin - type retainers).
