Repair Procedures: Removal

  1. Remove the cowl top cover.

    (Refer to Body - " COWL TOP COVER  ")

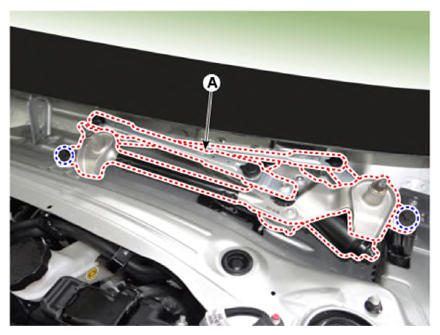

  2. Remove the wiper motor & linkage assembly (A) after loosening the mounting bolts.

    Tightening torque:  6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

    G12832825Courtesy of KIA MOTORS AMERICA, INC.

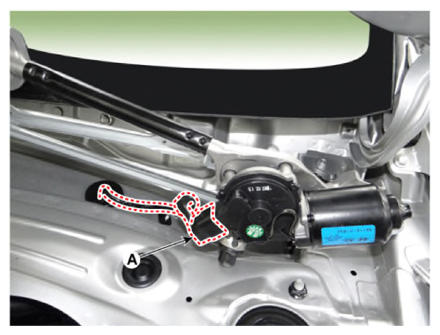

  3. Disconnect the wiper motor connector (A).
    G12832826Courtesy of KIA MOTORS AMERICA, INC.
