Repair Procedures: Inspection

  1. Remove the connector from the wiper motor.

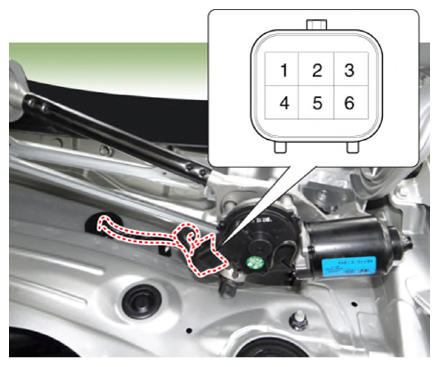

    G12832827Courtesy of KIA MOTORS AMERICA, INC.
    No. Description
    1 -
    2 Battery
    3 Wiper motor (Parking)
    4 Wiper motor (High)
    5 Ground
    6 Wiper motor (Low)
  2. Attach the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 5.

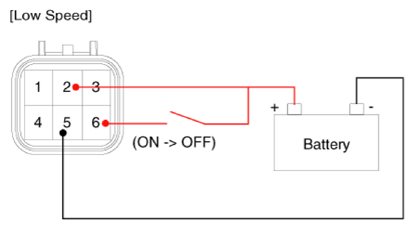

    G12832828Courtesy of KIA MOTORS AMERICA, INC.

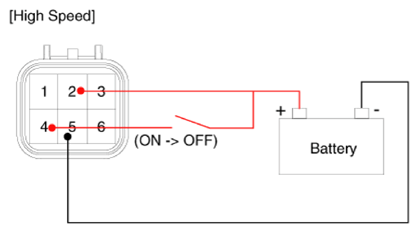

    G12832829Courtesy of KIA MOTORS AMERICA, INC.
