Components And Components Location: Components

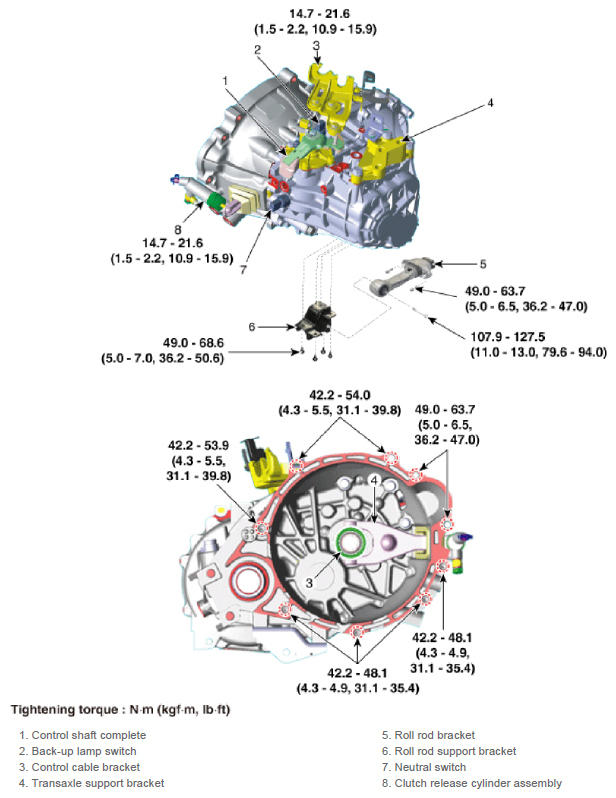

Fig 1: Manual Transaxle Components Location With Torque Specification

G12830456

Courtesy of KIA MOTORS AMERICA, INC.
