Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - " CRASH PAD LOWER PANEL  ")

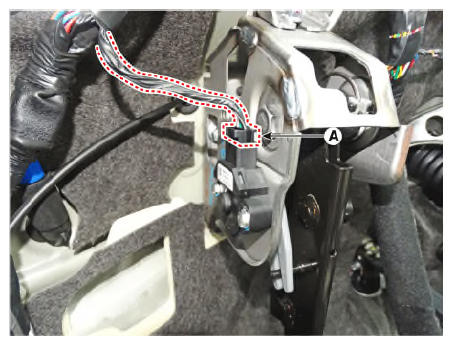

  3. Disconnect the ignition lock & clutch switch connector (A).
    G12830378Courtesy of KIA MOTORS AMERICA, INC.

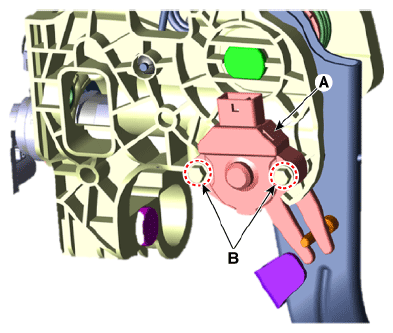

  4. Remove the ignition lock & clutch switch (A) after removing the bolts (B).
    G12830379Courtesy of KIA MOTORS AMERICA, INC.
    G12830380Courtesy of KIA MOTORS AMERICA, INC.
