Components And Components Location: Components

[Gasoline 2.0]

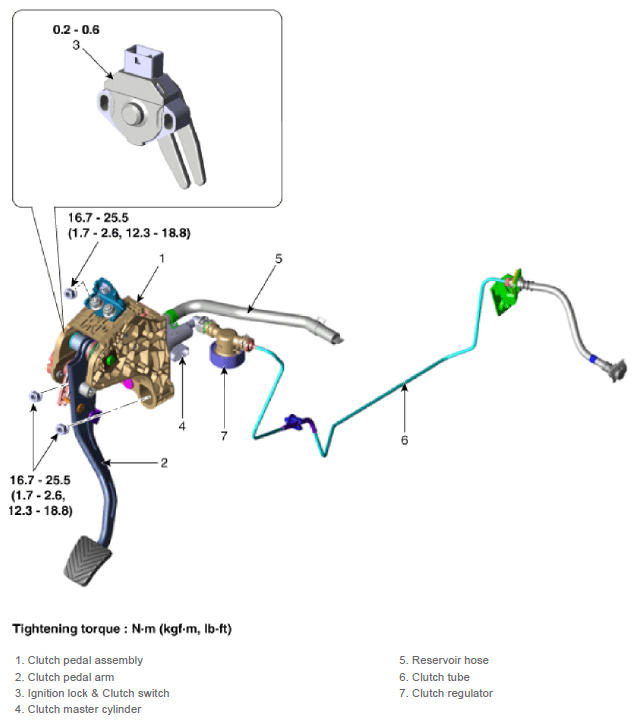

Fig 1: Clutch Master Cylinder Components Location With Torque Specification (Gasoline 2.0)

G12830392

Courtesy of KIA MOTORS AMERICA, INC.
