Repair Procedures: Installation

NOTE:

If reinstalling used cover, the cover should be installed with its clutch disc as a set.

Apply grease on a disc spline part and transaxle input shaft spline part as required.
Specified grease: CASMOLY L9508

Amount: 0.1 - 0.3 g
NOTE:
- When not applying: Excessive wear of splines and bad clutch operation can occur.
- When applying excessively: Grease can be spread by the centrifugal force which can contaminate the clutch disc. This can cause a loss of friction force causing a slip.
Courtesy of KIA MOTORS AMERICA, INC.

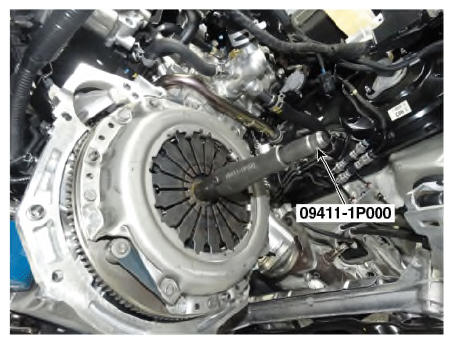

Install the clutch disc and the cover with special tool (09411-1 P000).
NOTE:
Possible problems when the disc is installed in the opposite direction.
- Transaxle shift error or a strange sound can occur due to clutch separation.

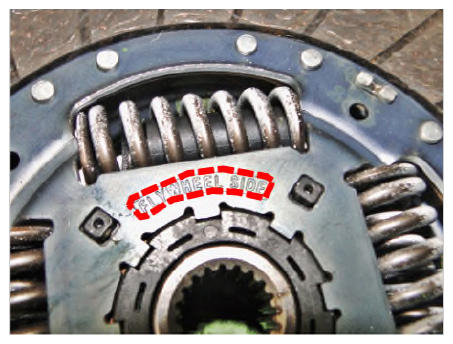

Gasoline 2.0: The 'FLYWHEEL SIDE' marked surface should face the flywheel.

Courtesy of KIA MOTORS AMERICA, INC.
Install the clutch cover bolts.
Tightening torque

Gasoline 2.0: 11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)
NOTE:
- Install the all the components with the specified torques. If not, the clutch torque transaxle may have concerns or the mounting bolt can loosen.
- When installing the clutch cover assembly, check the fastening order for each number of bolts and tighten the bolts loosely. Then, fast the bolts to their proper tightening torque. This can prevent twisting and vibration of the cover, and lifting of the pressure plate. Fastening order for each number (6 or 9) of bolts for installing the clutch cover assembly

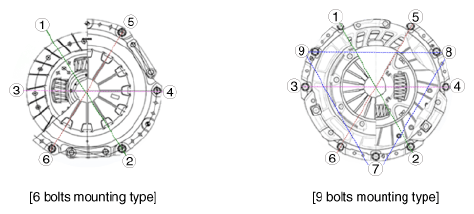

Fig 1: Clutch Cover Bolts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
Remove the clutch disc guide special tool (09411-1P000).

Courtesy of KIA MOTORS AMERICA, INC.
Install the transaxle assembly.
G 2.0 MPI NU (ATKINSON) (Refer to Manual Transaxle System - " MANUAL TRANSAXLE ")
