Circuit Diagram

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

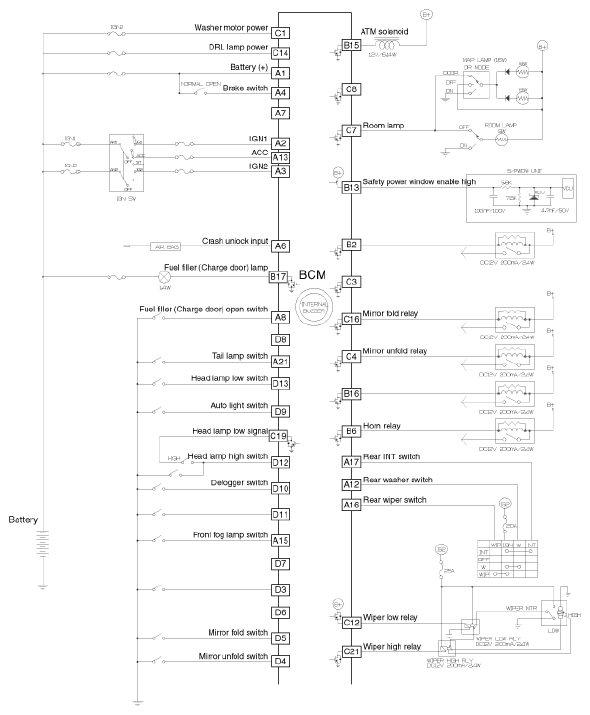

G12821022Courtesy of KIA MOTORS AMERICA, INC.

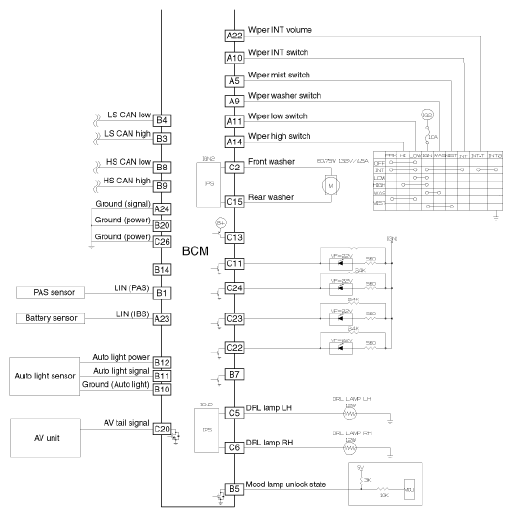

G12821023Courtesy of KIA MOTORS AMERICA, INC.
