Key Inter Lock Switch

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

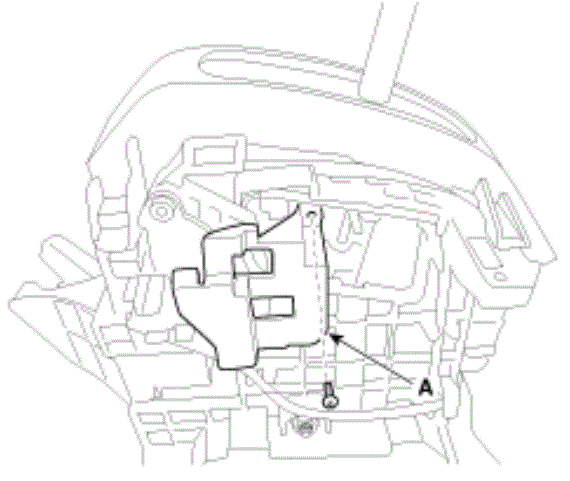

Remove the plastic bracket (B) by loosening the screw (A).

Courtesy of KIA MOTORS AMERICA, INC.

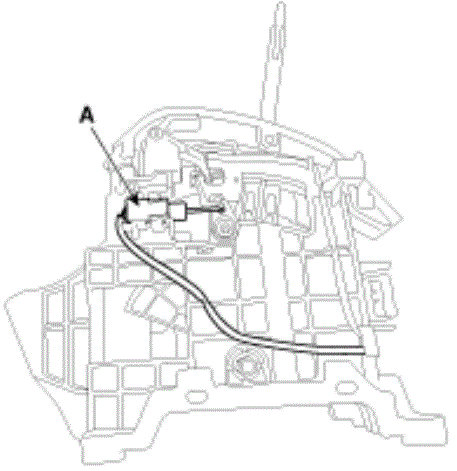

Remove the shift lock solenoid (A) from the shift lever assembly.

Courtesy of KIA MOTORS AMERICA, INC.

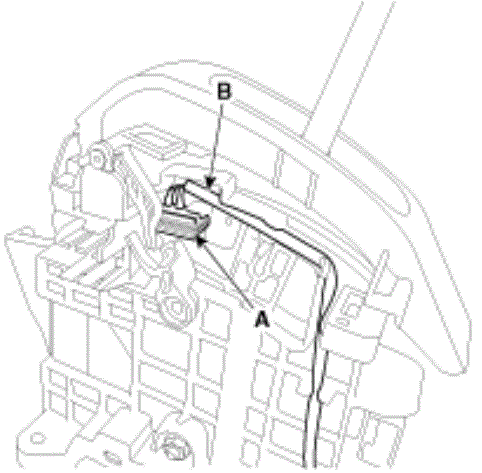

Disconnect the key inter lock switch (B) by removing the plastic bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the shift lever main connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

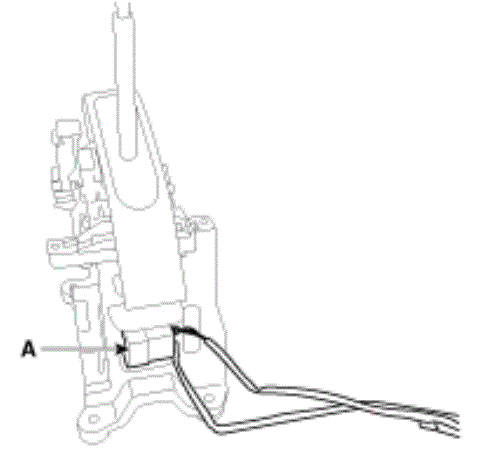

Remove the wiring fixed bracket in the main connector.

Courtesy of KIA MOTORS AMERICA, INC.

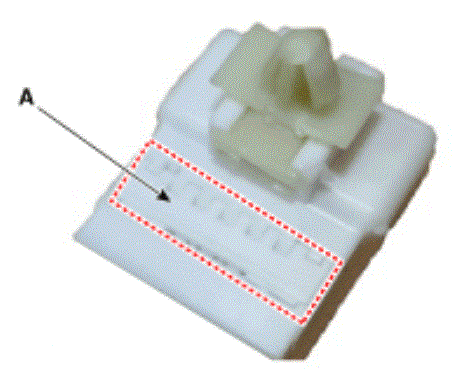

Remove the shift lock solenoid wiring from the main connector

NOTE: Be sure to check the wiring color before disconnecting the wiring.

Courtesy of KIA MOTORS AMERICA, INC.

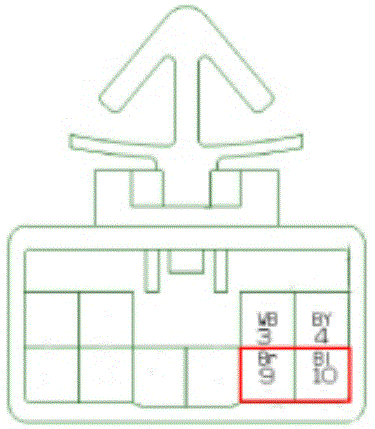

Pin	Function
3	Shift lock solenoid (-)
4	Shift lock solenoid (+)
9	Key inter lock switch (-)
10	Key inter lock switch (+)
