Monitor KDS Data

Writing VIN on PCM
Inspection Condition	Inspection Procedure	Reference

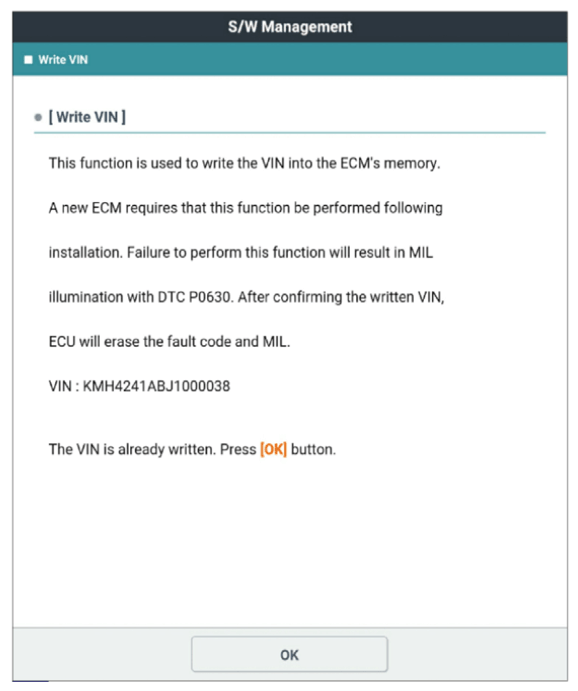

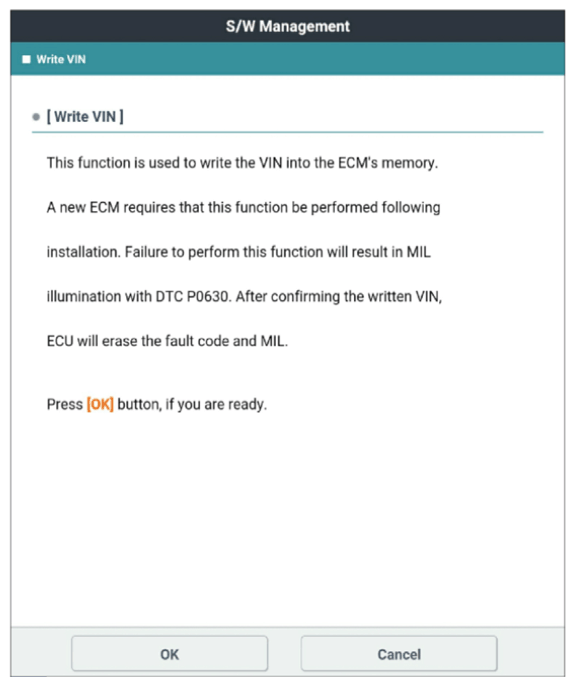

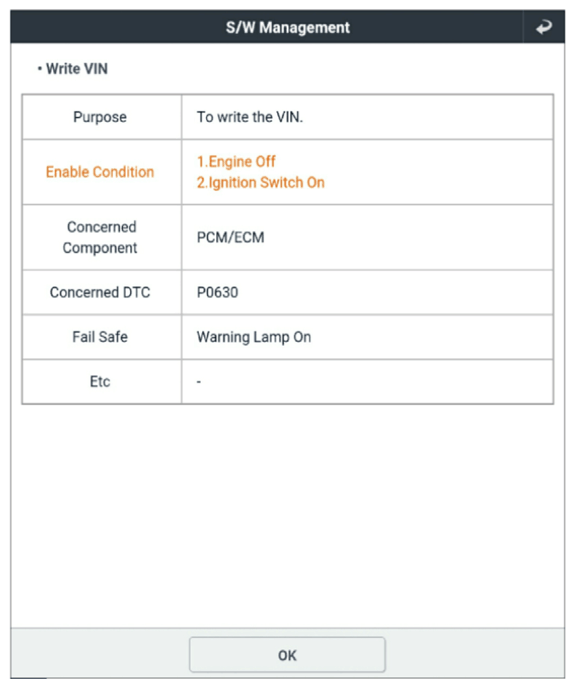

Ignition "ON" and engine "OFF".	Connect KDS to Data Link Connector (DLC). Perform "Vehicle S/W Management" of concerned component with KDS.	Figures

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the PCM and go to "VERIFICATION OF REPAIR " procedure.
