Circuit Inspection

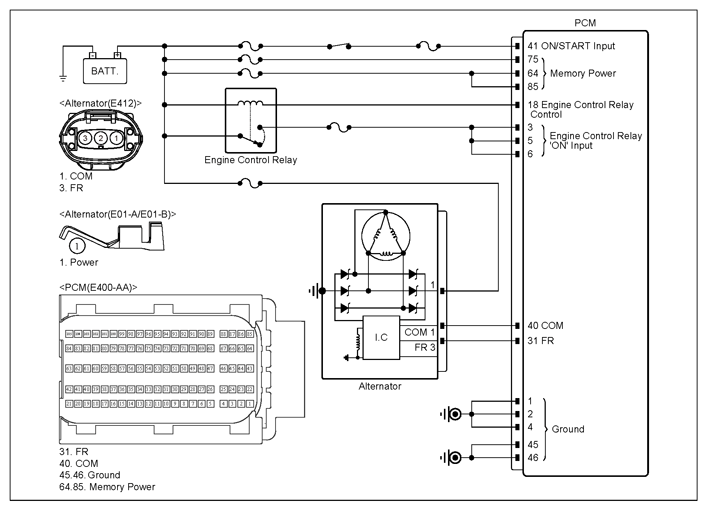

G12851327

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF" & Disconnect Alternator connector. Ignition "ON".	Alternator harness connector	3 (FR)	Chassis ground	-	Approx. 12V
	Alternator harness connector	2 (L)	Chassis ground	-	Approx. 12V
	Alternator harness connector	1 (COM)	Chassis ground	-	Approx. 7.3V

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
