Forte FE, Standard Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>

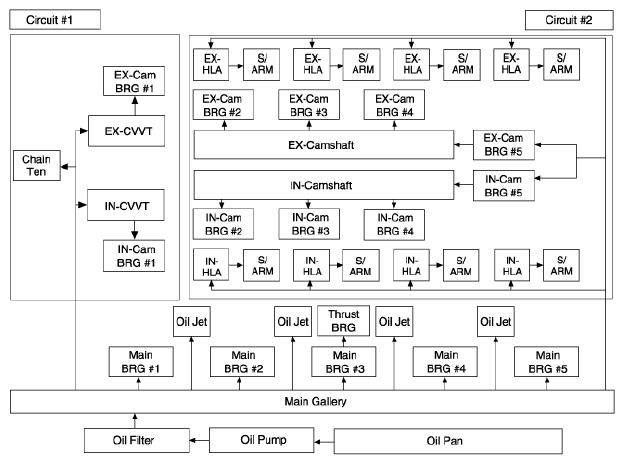

Flow Diagram
>>

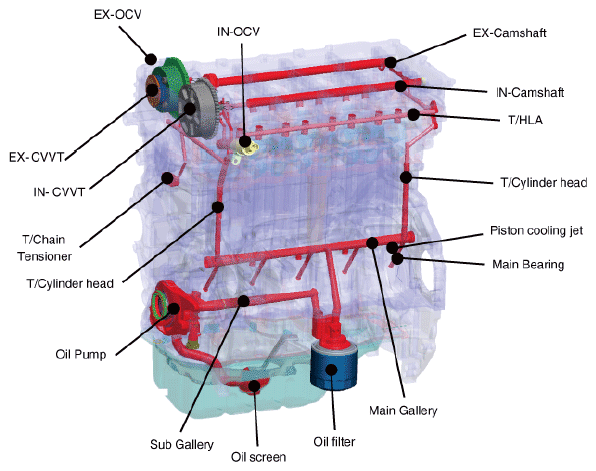

Engine Oil Schematics
Engine Oil Schematics
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
