Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - " FUEL PUMP  ")

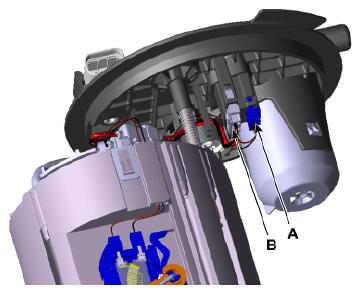

  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).
    G12830348Courtesy of KIA MOTORS AMERICA, INC.

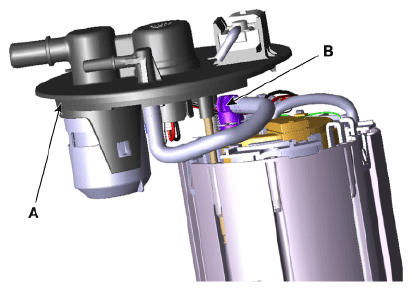

  3. Remove the head assembly (A) after releasing the cushion fixing hooks.
  4. Disconnect the fuel tube quick-connectors (B).
    G12830349Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the fuel sender (A) in the direction of an arrow.
    G12830350Courtesy of KIA MOTORS AMERICA, INC.

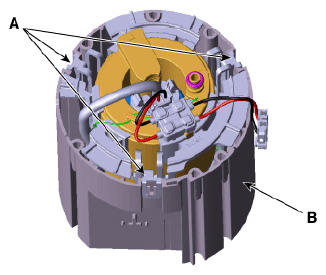

  6. Remove the reservior-cup (B) after releasing the fixing hooks (A).
    G12830351Courtesy of KIA MOTORS AMERICA, INC.

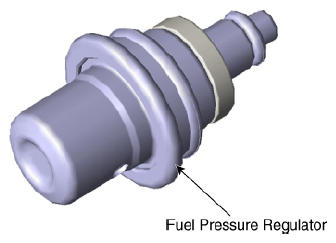

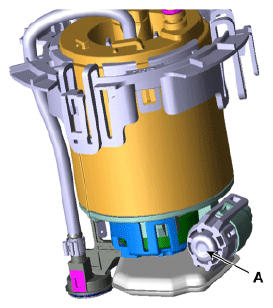

  7. Release the fixing hooks, and then remove the fuel pressure regulator (A).
    G12830352Courtesy of KIA MOTORS AMERICA, INC.
    G12830353Courtesy of KIA MOTORS AMERICA, INC.
