Assist/Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front right door trim./Remove the rear door trim.

    (Refer to Body - " FRONT DOOR TRIM  ")

    (Refer to Body - " REAR DOOR TRIM  ")

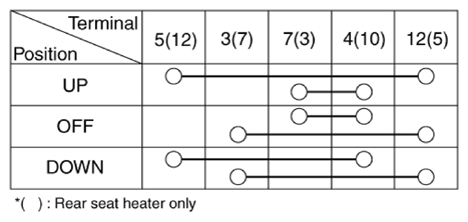

  3. Check for continuity between the terminals in each switch position according to the table.

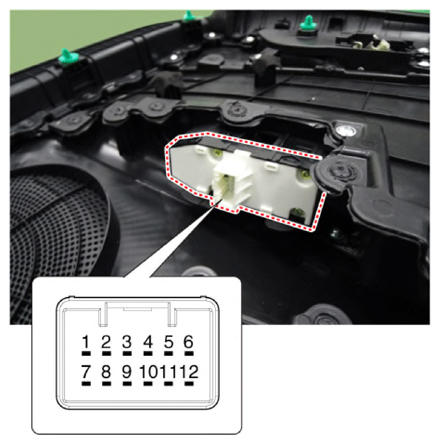

    G12832649Courtesy of KIA MOTORS AMERICA, INC.
    G12832650Courtesy of KIA MOTORS AMERICA, INC.
