Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

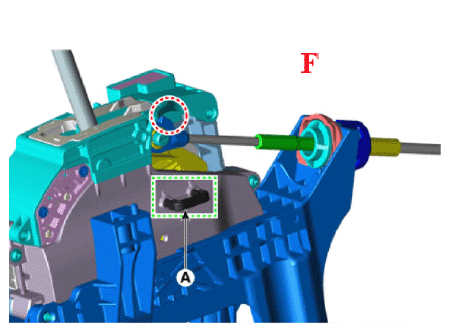

Before installation, insert "N range fixing pin" (A) of shift lever after checking the shift lever and manual control lever are on "N" range.

Install the shift cable after checking the direction of projection to prevent incorrect assembly.

Courtesy of KIA MOTORS AMERICA, INC.

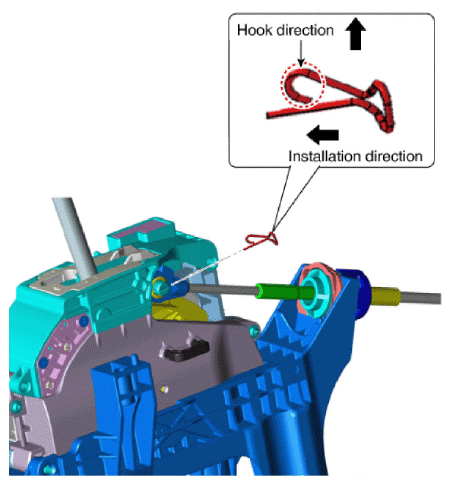

Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

Courtesy of KIA MOTORS AMERICA, INC.

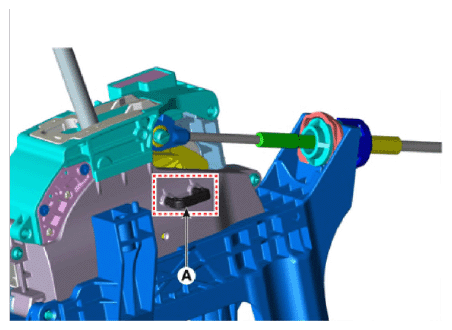

Make sure to get rid of "N range fixing pin" (A) after installing the shift lever assembly.

Courtesy of KIA MOTORS AMERICA, INC.
