Components And Components Location: Components

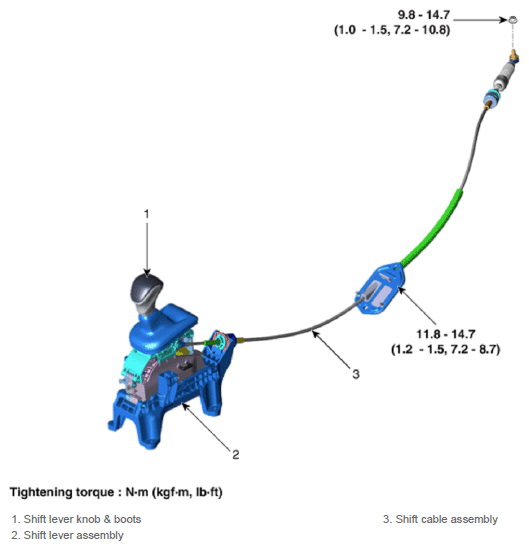

Fig 1: Shift Cable Components Location With Torque Specification

G12830532

Courtesy of KIA MOTORS AMERICA, INC.
