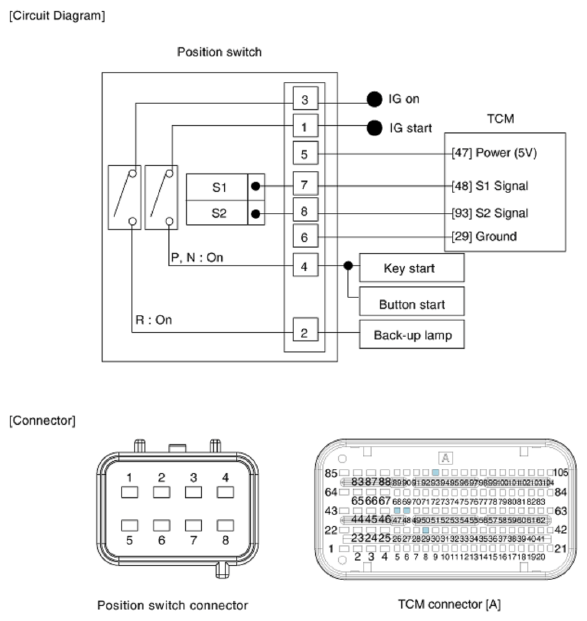

Home >> Kia >> 2019 >> Forte FE, Automatic CVT Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Intelligent Variable Transmission (IVT) Control System >> Position Switch >> Schematic Diagrams >> Circuit Diagram
