Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Remove the air duct and air cleaner assembly.

    (Refer to Engine Mechanical System - " AIR CLEANER  ")

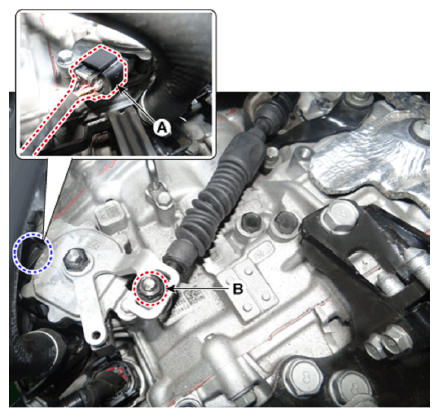

  3. Disconnect the position switch connector (A) and loosen the shift cable mounting nut (B).
    G12830510Courtesy of KIA MOTORS AMERICA, INC.

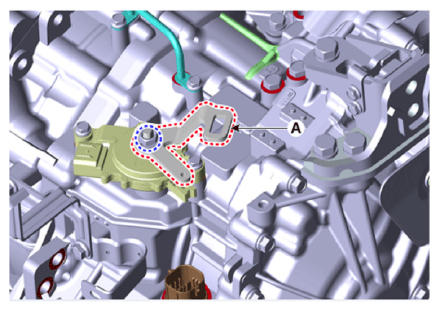

  4. Remove the manual control lever (A) and the washer after removing a nut.
    G12830511Courtesy of KIA MOTORS AMERICA, INC.

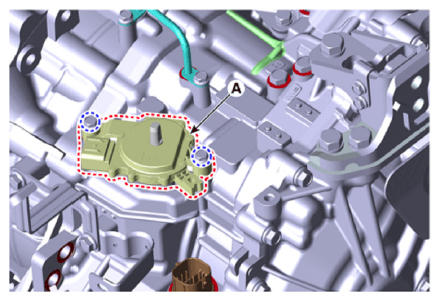

  5. Remove the position switch (A) after removing the bolts.
    G12830512Courtesy of KIA MOTORS AMERICA, INC.
