Repair Procedures: Replacement

CAUTION: When installing the belt, make sure not to damage the retractor.

Remove the package tray trim.
(Refer to Interior Trim - " REAR PACKAGE TRAY TRIM ")

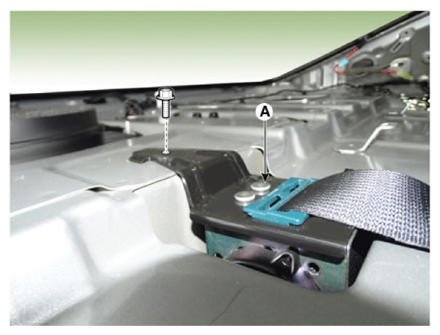

After loosening the mounting bolt, remove the rear center seat belt retractor (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 Kgf.m, 28.8 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information

Replace any damaged clips.
