Repair Procedures: Replacement

CAUTION:

NOTE:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

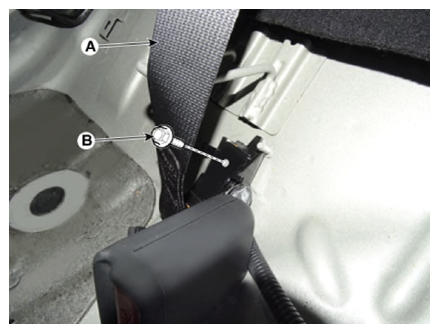

After loosening the mounting bolt, remove the rear seat belt lower anchor (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 Kgf.m, 28.8 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear wheel house trim.
(Refer to Interior Trim - " REAR WHEEL HOUSE TRIM ")

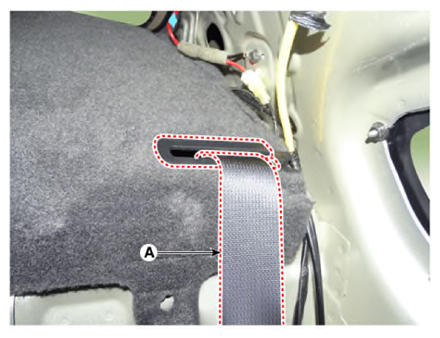

Remove the rear seat belt upper anchor (A).

Courtesy of KIA MOTORS AMERICA, INC.

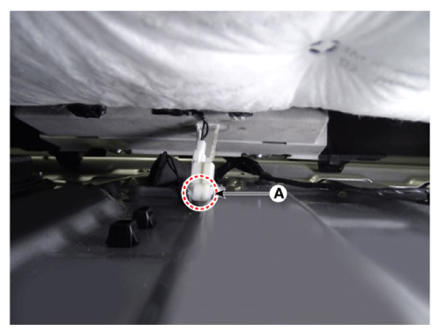

Disconnect the stop light connector (C).

Courtesy of KIA MOTORS AMERICA, INC.

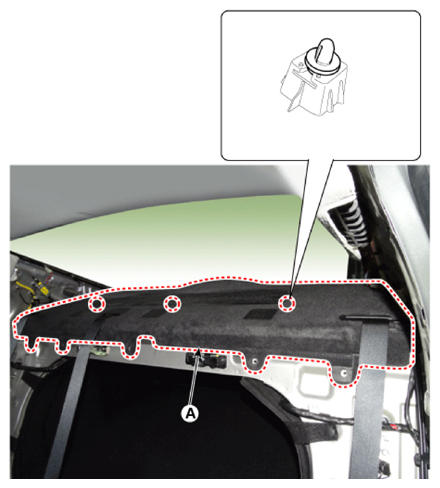

Using a screwdriver or remover, remove the package tray trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information

Replace any damaged clips (or pin - type retainers).
