Components And Components Location: Components

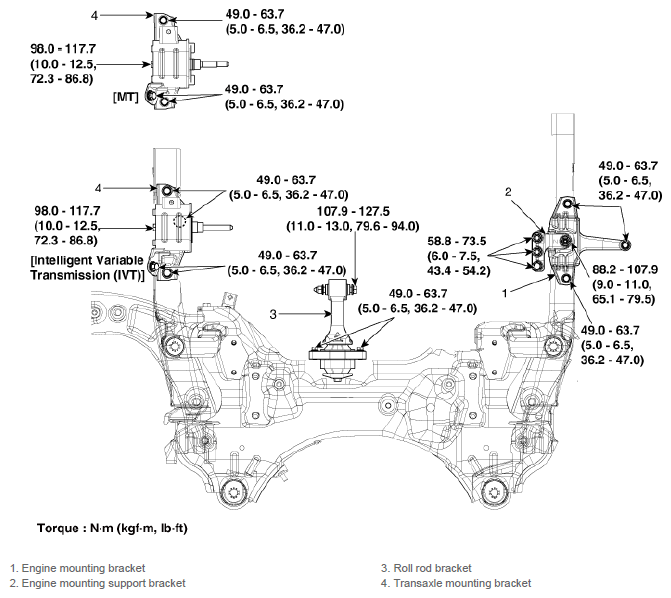

Fig 1: Engine Mounting Components Location With Torque Specification

G12826348

Courtesy of KIA MOTORS AMERICA, INC.
