Repair Procedures: Removal

[LH]

1. Disconnect the negative battery terminal.
   NOTE: After disconnecting the cables, wait at least 30 seconds.

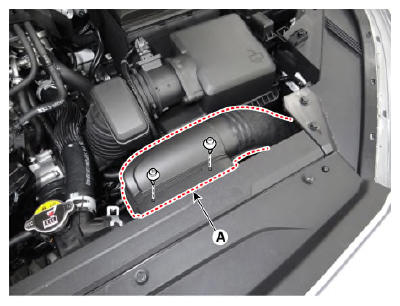

2. Remove the air duct (A).

   Courtesy of KIA MOTORS AMERICA, INC.

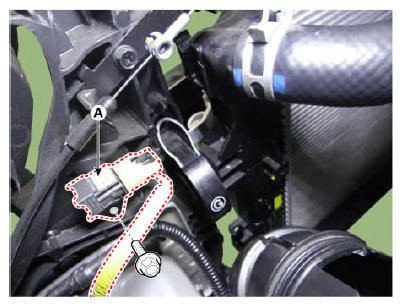

3. Loosen the bolt and then remove the front impact sensor (A).

   Tightening torque:

   8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

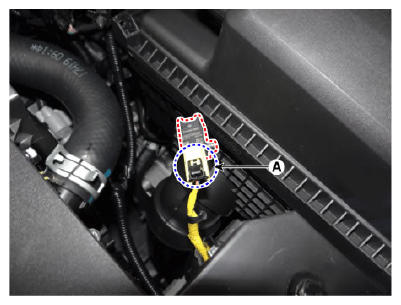

4. Disconnect the front impact sensor connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

[RH]

1. Disconnect the negative battery terminal.
   NOTE: After disconnecting the cables, wait at least 30 seconds.

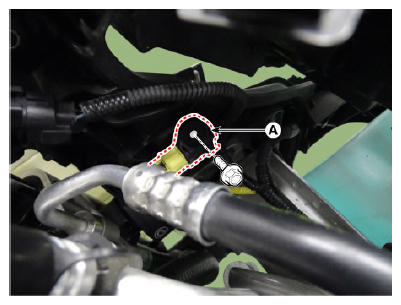

2. Loosen the bolt and then remove the front impact sensor (A).

   Tightening torque:

   8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

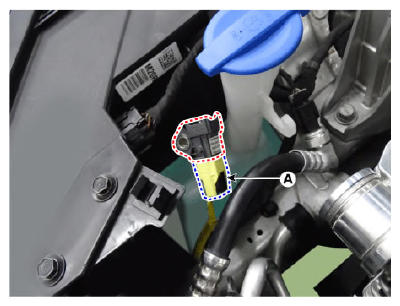

3. Disconnect the front impact sensor connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.
