Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
    NOTE: After disconnecting the cables, wait at least 30 seconds.

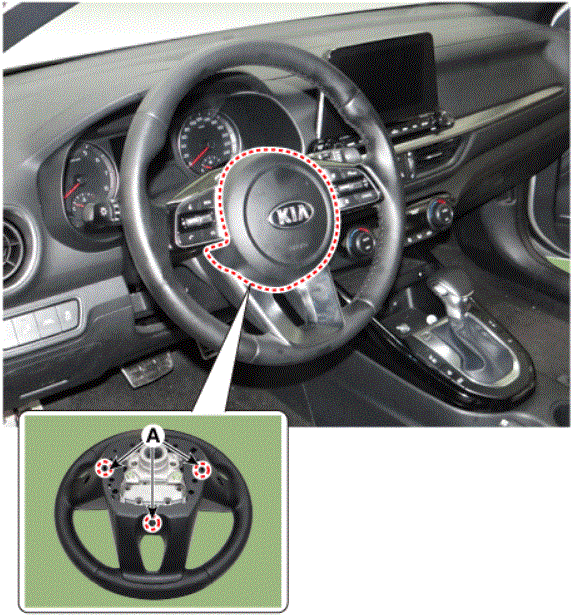

  2. While turning the steering wheel to left and right, press the parts marked A (3 red dotted circles) under the steering wheel and then remove the airbag module.
    G00588632Courtesy of KIA MOTORS AMERICA, INC.

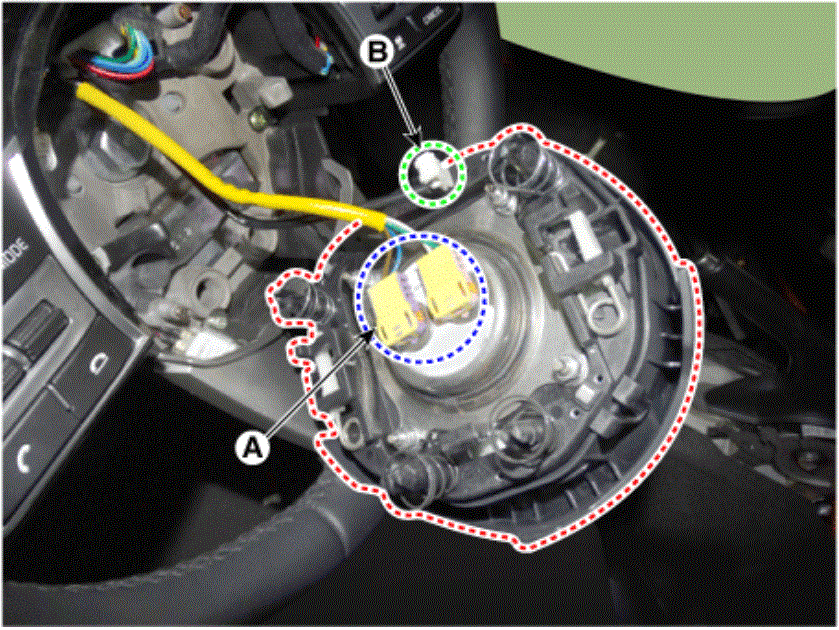

  3. Disconnect the airbag module connector (A) and horn connector (B).
    G00588633Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
