Repair Procedures: Removal

Disconnect the battery negative terminal.
NOTE: After disconnecting the cables, wait at least 30 seconds.
Remove the roof trim.
(Refer to Body - " ROOF TRIM ASSEMBLY ")

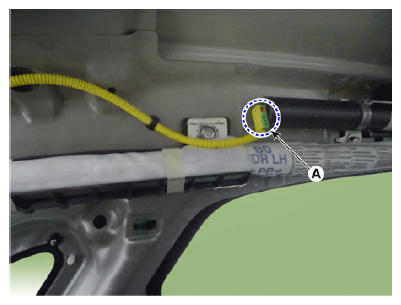

Disconnect the connector (A) for curtain airbag module.

Courtesy of KIA MOTORS AMERICA, INC.

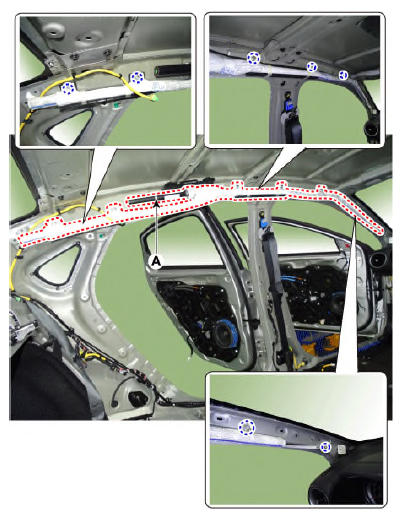

Remove the curtain airbag module (A) after loosening the bolts.
Tightening torque:

7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Never twist the airbag module when installing it. If the module is twisted, airbag module may operate abnormally.
